NVIDIA RTX 2000 Embedded GPU MXM Module Based On Ada Lovelace Architecture.
Key Features:
- NVIDIA RTX 2000 Ada GPU
- 8GB GDDR6 Memory
- Up to 12.99 TFLOPS
- 60W Total Graphics Power
- 3072 CUDA Cores
- Wide Operating Temperature Range
Overview:

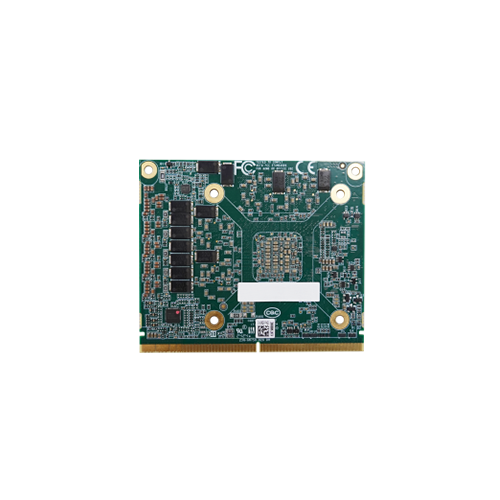

The MX2000A-VA MXM 3.1 Type A module features an NVIDIA RTX 2000 Ada Generation Embedded GPU based on the NVIDIA Ada Lovelace architecture. This architecture delivers revolutionary ray tracing and AI performance for graphics and neural networks.
With dramatically higher baseline performance tailored for ray tracing and neural graphics workloads, it marks a major advancement in capabilities. The module enables outstanding gaming, content creation, professional graphics, AI acceleration, and compute power.
Back-Order Lead Time:
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
GPU Engine:
NVIDIA RTX 2000 Ada Generation Embedded GPU.
NVIDIA Ada Lovelace Architecture.
3072 CUDA Cores.
96 Tensor Cores.
24 RT Cores.
12.99 TFLOPS Floating Point Performance.
1635 MHz (Base) / 2115 MHz (Boost) Core Clock.
Memory:
8GB GDDR6
16 Gbps Speed.
128-bit Interface Width.
256 GBs Bandwidth.
- I/O
Display:
7680 x 4320 Resolution.
3 x DisplayPort 1.4a.
Feature Support:
PCI Express 4.0 x8.
DirectX: 12 Ultimate.
Open GL 4.6.
Vulkan 1.2.
- Power
Power Consumption:
60W Total Graphics Power (TGP).
- Environmental
Standard Operating Temperature (MX2000A-VAA-A1):
0°C to + 55°C (32°F ~ 131°F).
Extended Operating Temperature (MX2000A-VAW-A1):
-40°C to + 85°C (-40°F ~185°F).
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Certification:
CE / FCC / UKCA.
- Mechanical
Dimension (W x D):
82 x 70 mm (3.22” x2.75”).
Weight (Net):
0.037 kg (0.082 lb).
- Other Features
Software Support:
Windows 10/11 (64-bit).
Linux (64-bit).
Form Factor:
MXM Graphics Module Version 3.1 (Type A).
