NVIDIA RTX 3500 Embedded GPU MXM Module Based On Ada Lovelace Architecture
Key Features:
- NVIDIA RTX 3500 Ada GPU
- 12GB GDDR6 Memory
- Up to 23.04 TFLOPS
- 115W Total Graphics Power
- 5120 CUDA Cores
- Wide Operating Temperature Range
Overview:

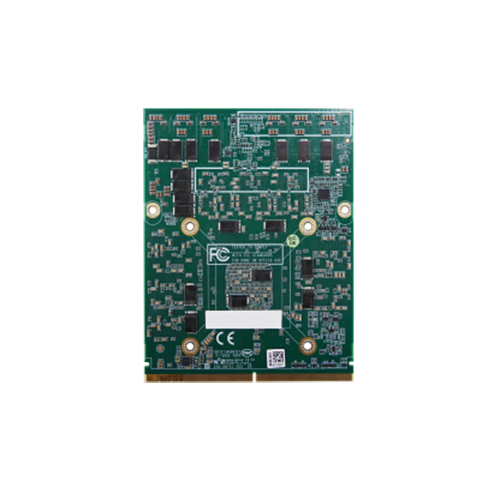

The MX3500A-SA MXM 3.1 Type B module features an NVIDIA RTX 3500 Ada Generation Embedded GPU based on the NVIDIA Ada Lovelace architecture. This architecture delivers revolutionary ray tracing and AI performance for graphics and neural networks.
With dramatically higher baseline performance tailored for ray tracing and neural graphics workloads, it marks a major advancement in capabilities. The module enables outstanding gaming, content creation, professional graphics, AI acceleration, and compute power.
Back-Order Lead Time:
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
GPU Engine:
NVIDIA RTX 3500 Ada Generation Embedded GPU.
NVIDIA Ada Lovelace Architecture.
5120 CUDA Cores.
160 Tensor Cores.
40 RT Cores.
23.04 TFLOPS Floating Point Performance.
1725 MHz (Base) / 2250 MHz (Boost) Core Clock.
Memory:
12GB GDDR6
18 Gbps Speed.
192-bit Interface Width.
432 GBs Bandwidth.
- I/O
Display:
7680 x 4320 Resolution.
4 x DisplayPort 1.4a.
Feature Support:
PCI Express 4.0 x16.
DirectX: 12 Ultimate.
Open GL 4.6.
Vulkan 1.2.
- Power
Power Consumption (MX3500A-SAG-A1):
80W Total Graphics Power (TGP).
Power Consumption (MX3500A-SAA-A1):
115W Total Graphics Power (TGP).
- Environmental
Standard Operating Temperature (MX3500A-SAA-A1):
0°C to + 55°C (32°F ~ 131°F).
Extended Operating Temperature (MX3500A-SAG-A1):
-40°C to + 85°C (-40°F ~185°F).
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Certification:
CE / FCC / UKCA.
- Mechanical
Dimension (W x D):
82 x 105 mm (3.22” x 4.13”).
Weight (Net):
0.0592 kg (0.1305 lb).
- Other Features
Software Support:
Windows 10/11 (64-bit).
Linux (64-bit).
Form Factor:
MXM Graphics Module Version 3.1 (Type B).
