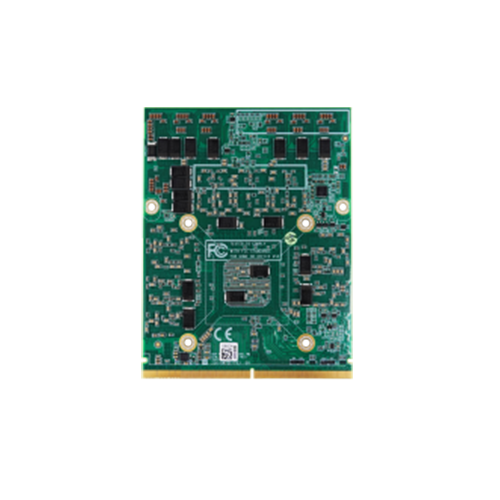

NVIDIA RTX 5000 Embedded GPU MXM Module Based On Ada Lovelace Architecture

SKU: MX5000A-WA

Key Features:

Overview:

The MX5000A-WA MXM 3.1 Type B module features an NVIDIA RTX 5000 Ada Generation Embedded GPU based on the NVIDIA Ada Lovelace architecture. This architecture delivers revolutionary ray tracing and AI performance for graphics and neural networks.

With dramatically higher baseline performance tailored for ray tracing and neural graphics workloads, it marks a major advancement in capabilities. The module enables outstanding gaming, content creation, professional graphics, AI acceleration, and compute power.

Back-Order Lead Time:

3 to 4 Week Lead Time (Please Contact For More Information)

Technical Support

Specifications

GPU Engine:
NVIDIA RTX 5000 Ada Generation Embedded GPU.
NVIDIA Ada Lovelace Architecture.
9728 CUDA Cores.
304 Tensor Cores.
76 RT Cores.
41.15 TFLOPS Floating Point Performance.
1425 MHz (Base) / 2115 MHz (Boost) Core Clock.

Memory:
16GB GDDR6
18 Gbps Speed.
256-bit Interface Width.
576 GBs Bandwidth.

Display:
7680 x 4320 Resolution.
4 x DisplayPort 1.4a.

Feature Support:
PCI Express 4.0 x16.
DirectX: 12 Ultimate.
Open GL 4.6.
Vulkan 1.2.

Power Consumption (MX5000A-WAG-A1):
80W Total Graphics Power (TGP).

Power Consumption (MX5000A-WAA-A1):
115W Total Graphics Power (TGP).

Standard Operating Temperature (MX5000A-WAA-A1):
0°C to + 55°C (32°F ~ 131°F).

Extended Operating Temperature (MX5000A-WAG-A1):
-40°C to + 70°C (-40°F ~158°F).

Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).

Humidity:
95% @ 40°C (104°F) (Non-condensing).

Certification:
CE / FCC / UKCA.

Dimension (W x D):
82 x 105 mm (3.22” x 4.13”).

Weight (Net):
0.06 kg (0.1323 lb).

Software Support:
Windows 10/11 (64-bit).
Linux (64-bit).

Form Factor:
MXM Graphics Module Version 3.1 (Type B).
