22” Medical Grade Panel PC With 13th Gen Raptor Lake-P CPU
- On Request
Key Features:
- 21.5″ FHD IPS Display
- 13th Gen Raptor Lake-P CPU
- Up to 64GB DDR5 Memory
- Optional DICOM Pre-set Module
- Modular PCIe x4 Expansion
- Chemical Etching AG Coating
Overview:
The IEI POCi-W22C-RPL is a medical panel PC featuring AI, edge computing with rich expansion functions. It is ideal to work in many kinds of medical scenario such as radiology, telemedicine, endoscopy system or surgical working station.
Contact For Price
- Please Contact For Lead Time
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
LCD Size:
21.5”.
Resolution:
1920 x 1080.
LCD Brightness (cd/m²):
350.
LCD Contrast Ratio:
1000:1.
LCD Colour:
16.7M (RGB 8-bit).
LCD Pixel Pitch (mm):
0.2745 (H) x 0.2745 (V).
Viewing Angle (H/V):
178°/178°.
Backlight MTBF:
50000.
Touch Screen:
PCAP.
Touch Controller:
EETI.
Touch Surface Hardness:
6H.
Touchscreen Coating:
Chemical Etching AG.
Processor:
13th Gen Intel® Core™ i5-1340PE/ i7-1370PE (Raptor Lake-P).
Storage:
2 x M.2 2280 M key (PCIe/ SATA) with RAID.
Memory:
2 x 262-pin 4800MT/s dual-channel DDR5 SO-DIMM slots (64GB Max).
Expansion:
1 x PCIe x2.
1 x M.2 2230 A-E key (PCIe+USB).
2 x M.2 2260/80 B-M key (PCIe/ SATA).
- I/O
Side I/O:
2 x USB 2.0 port

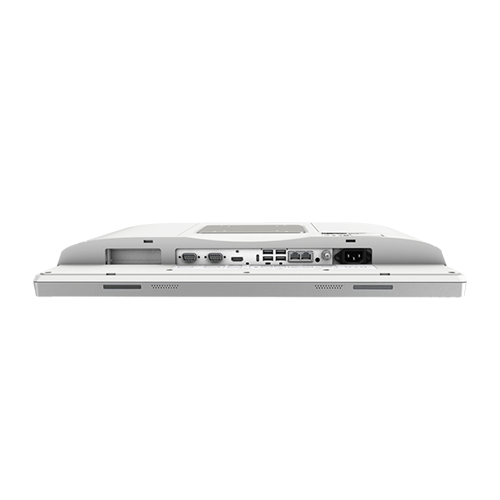

Rear I/O:
1 x AC jack.
1 x HDMI.
1 x USB Type-C (DP + USB 5V/3A).
1 x Combo audio (Out / Mic-in).
2 x RS-232.
2 x 2.5GbE LAN.
4 x USB 3.2 (Gen 2) (10Gb/s).
- Power
Input:
85V – 264V AC input.
Built-in Power Supply:
150W (85V – 264V AC) Medical power supply.
- Environmental
Operating Temperature:
0°C to 40°C.
Storage Temperature:
-20°C ~ 60°C.
Humidity:
10% ~ 95% (non-condensing).
Vibration:
1G.
Shock:
5G peak acceleration (11ms duration).
IP Rating:
IP66 (Front).
Construction:
Fanless cooling.
Aluminium die-casting (Front bezel).
ABS+PC plastic (Chemical resistant Rear cover).
Safety & EMC:
CE / FCC Class B Part18 / UL 60601-1 / IEC/EN 60601-1 / IEC/EN 60601-1-2.
- Mechanical
Mounting:
Wall, Stand and Arm.
VESA 75/100 Compliant.
Weight (Net):
6.9 kg.
Dimensions (L x W x H):
507.5 x 335.5 x 64.5 mm.
- Other Features
OSD Function:
1 x Power on/off.
1 x Reading light on/off.
1 x Brightness up.
1 x Brightness down.
1 x LCD & touch lock on/off.
1 x DICOM mode app on/off (Optional).
Buttons:
1 x Power on/off.
1 x AT/ATX switch.
1 x Reset button.
1 x Clear CMOS Button.
Indicators:
1 x Power indicator.
Speaker:
2 x 2W Speaker.
Microphone:
1 x Digital microphone.
Ethernet Controller:
Intel® I226-V
Wi-Fi:
IEEE 802.11 a/b/g/n/ac/ax, Intel® Wi-Fi 6E AX210.
Bluetooth:
Bluetooth V5.2.
Supported OS:
Windows 11.
Linux Ubuntu.
