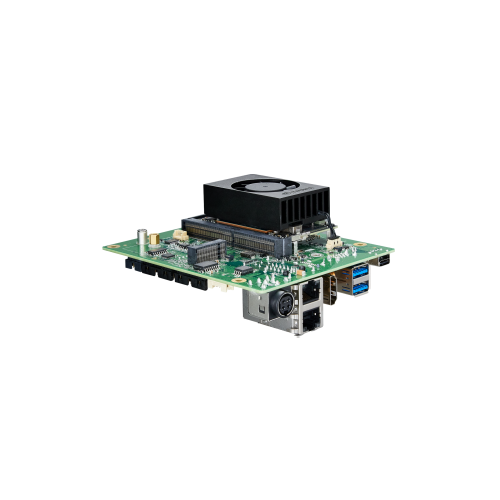

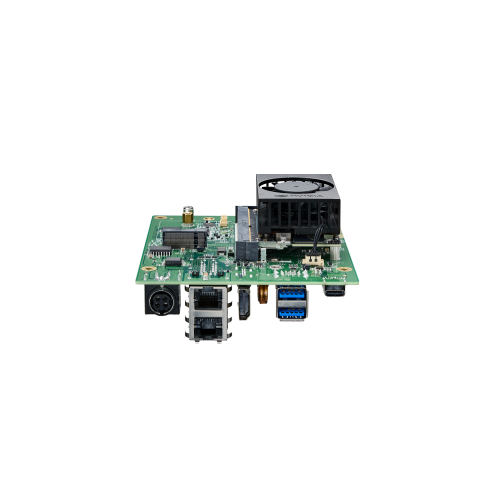

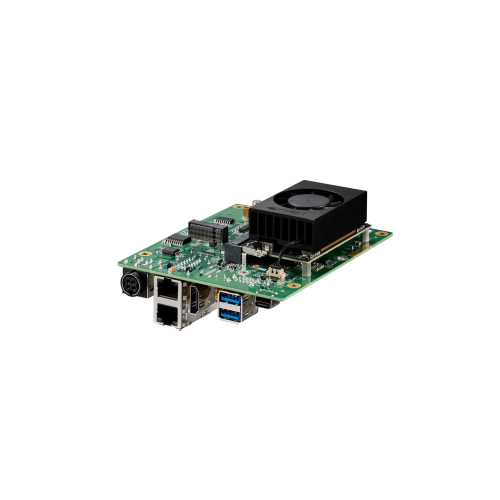

Industrial Jetson Orin Nano / Orin NX Carrier With 2 x GbE
Key Features:
- 20 TOPS of AI performance
- 2 x Gigabit Ethernet
- 5 x GPIO
- Isolated CAN (Inc. CAN FD)
- 3 x M.2 Expansion Slots
- Available Until 2032
Overview:
The NVIDIA Jetson Orin NX module offers up to 100 TOPS, 3 times more than the NVIDIA Jetson AGX Xavier™ module, and approximately 5 times the NVIDIA Jetson Xavier™ NX module; NVIDIA Jetson Orin Nano module offers up to 40 TOPS, 80 times the NVIDIA Jetson Nano™ module. In other words, NVIDIA Jetson Orin NX and Orin Nano module set new standard for mainstream and entry-level edge AI in the smallest Jetson form factor.
Back-Order Lead Time:
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
AI Performance:
20 TOPS (AIB-MO22).
40 TOPS (AIB-MO32).
70 TOPS (AIB-MN32).
100 TOPS (AIB-MN42).
Module Compatibility:
NVIDIA Jetson Orin Nano 4GB (AIB-MO22).
NVIDIA Jetson Orin Nano 8GB (AIB-MO32).
NVIDIA Jetson Orin NX 8GB (AIB-MN32).
NVIDIA Jetson Orin NX 16GB (AIB-MN42).
GPU:
512 Core NVIDIA Ampere (16 Tensor Cores) (AIB-MO22).
1024 Core NVIDIA Ampere (32 Tensor Cores) (AIB-MO32 / AIB-MN32 / AIB-MN42).
CPU:
6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 (AIB-MO22 / AIB-MO32 / AIB-MN32).
8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 (AIB-MN42).
Memory:
4GB 64-bit LPDDR5 34GB/s (AIB-MO22).
8GB 128-bit LPDDR5 68GB/s (AIB-MO32).
8GB 128-bit LPDDR5 @ 2133 HMz 102.4 GB/s (AIB-MN32).
16GB 128-bit LPDDR5 @ 2133 HMz 102.4 GB/s (AIB-MN42).
Storage:
1 x M.2 M-Key 2242 (NVMe 128GB built-in).
Expansion:
1 x M.2 B-Key 3042/3052 (LTE/4G/5G).
1 x M.2 E-Key 2230 (WiFi/BT).
1 x M.2 M-Key 2242 (NVMe 128GB built-in).
- I/O
Display:
1 x HDMI 2.0 (Type A).
Audio:
Line-out / Line-in / Mic (Optional with daughter board).
Camera Input:
1 x 8-Lane MIPI Expansion Connector (120 Pin).
LAN:
2 x RJ-45 GbE ports.
USB:
2 x USB 3.2 (Gen2) (Type A) (Supports up to 10Gbps shared).
1 x OTG (Type-C).
Other I/O:
5 x GPIO.
1 x SPI.
1 x I2S.
3 x I2C.
1 x UART.
1 x UART (Debug Only).
1 x RS-232.
1 x CAN (Isolation / Supports CAN FD).
1 x RS-422/485 (2-in1).
1 x microSIM Card Slot.
- Power
Power Consumption:
7W Idle / 28.68* W Full Loading (AIB-MO22 / AIB-MO32).
7.3 W Idle / 39* W Full Loading (AIB-MN32 / AIB-MN42).
Power Input/Connector:
DC-in 12 to 24 VDC / 4-pin DC Jack Power Connector.
- Environmental
Operating Temperature:
-25°C ~ +80°C (-13°F ~ +176°F).
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Vibration:
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock:
10 G, IEC 60068-2-27, half sine, 11 ms duration.
Certification:
CE / FCC Class A / UKCA.
- Mechanical
Dimension (W x D x H):
120 x 100 x 57.54 mm (4.73 x 3.94 x 2.27″).
Weight (Net):
0.195 kg (0.43 lb).
- Other Features
Software Support:
Linux (Support Jetpack 5.0 above).
MISC. Function:
1 x Recovery / Reset Button.
RTC:
With super capacitor battery (Optional).
