Compact Fanless Jetson Orin Nano / Orin NX System
- In Stock
Key Features:
- Tiny Size
- 5 x GPIO
- Isolated CAN (Inc. CAN FD)
- Wide DC Input
- Available Until 2032
- Fanless Design
Overview:
The Aetina AIE-PN33/43-6USB is a compact, fanless edge AI system powered by NVIDIA® Jetson Orin™ NX, delivering up to 100 TOPS for real-time inferencing.
With six USB 3.2 ports for multi-camera input and versatile M.2 expansion options, it supports a range of AI applications including visual inspection and security monitoring. Compatible with Jetson Orin NX and Nano modules, and featuring EdgeEye for remote management, it offers a powerful, scalable solution for edge AI deployments.
Back-Order Lead Time:
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
Module Compatibility:
NVIDIA Jetson Orin Nano 4GB / Super Mode (AIE-CO21).
NVIDIA Jetson Orin Nano 8GB / Super Mode (AIE-CO31).
NVIDIA Jetson Orin NX 8GB (AIE-CN31).
NVIDIA Jetson Orin NX 16GB (AIE-CN41).
AI Performance:
20 TOPS / 34 TOPS Super Mode (AIE-CO21).
40 TOPS / 67 TOPS Super Mode (AIE-CO31).
70 TOPS (AIE-CN31).
100 TOPS (AIE-CN41).
GPU:
512 Core NVIDIA Ampere with 16 Tensor Cores (AIE-CO21).
1024 Core NVIDIA Ampere with 32 Tensor Cores (AIE-CO31).
1024 Core NVIDIA Ampere with 32 Tensor Cores (AIE-CN31 & AIE-CN41).
CPU:
6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 (AIE-CO21 & AIE-CO31).
6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 (AIE-CN31).
8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 (AIE-CN41).
Memory:
4GB 64-bit LPDDR5 34GB/s / 4GB 64-bit LPDDR5 51 GB/s Super Mode (AIE-CO21).
8GB 128-bit LPDDR5 68GB/s / 8GB 128-bit LPDDR5 68GB/s Super Mode (AIE-CO31).
8GB 128-bit LPDDR5 102.4 GB/s (AIE-CN31).
16GB 128-bit LPDDR5 102.4 GB/s (AIE-CN41).
Storage:
1 x M.2 NVMe M-Key 2242 (128GB built-in).
Expansion:
1 x M.2 E-Key 2230 (WiFi/BT).
1 x M.2 M-Key 2242 (NVMe 128GB built-in).

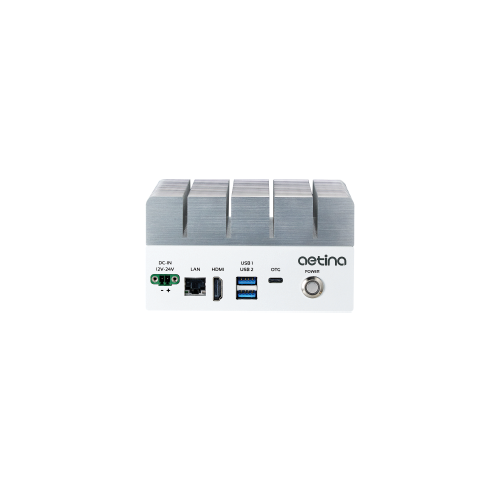

- I/O
Display:
1 x HDMI 2.0 (Type A).
Ethernet:
2 x RJ-45 GbE ports.
USB:
2 x USB 3.2 Gen2 (Type A) (Support up to 10 Gbps shared).
1 x OTG (Type-C).

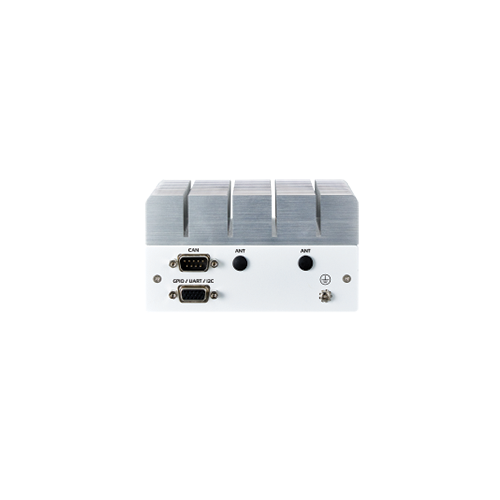

Other:
5 x GPIO.
1 x UART.
1 x I2C.
1 x CAN (Isolation / Supports CAN FD).
- Power
Input/Connector:
DC-in 12-24VDC / 2-Pin Terminal Block.
AIE-CO21 Power Consumption:
6.4 W Idle / 25.08* W Full Loading.
6.4 W Idle / 40* W Full Loading (Super Mode).
AIE-CO31 Power Consumption:
6.4 W Idle / 25.08* W Full Loading.
6.4 W Idle / 40* W Full Loading (Super Mode).
AIE-CN31 & AIE-CN41 Power Consumption:
3.7 W Idle / 35.5* W Full Loading.
*For more test condition information, please refer to user manual.
- Environmental
Vibration:
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock:
10 G, IEC 60068-2-27, half sine, 11 ms duration.
Operating Temperature:
-25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow.
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Certification:
CE / FCC Class A / UKCA.
- Mechanical
Dimension (W x D x H):
130 x 90.2 x 72 mm (5.11 x 3.55 x 2.83 in).
Mounting:
Wall Mount (Optional) / Din Rail (Optional).
Weight (Net):
0.927 kg (2.044 lb).
- Other Features
MISC Function:

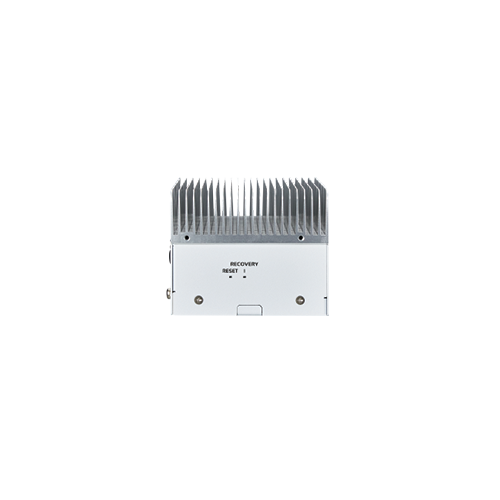

1 x Power / 1 x Recovery Button / 1 x Reset Button.
1 x CAN 2.0b with isolation.
RTC:
With super capacitor / Battery (Optional).
Software Support:
Linux (Support Jetpack 5.0 above).
