Fanless Jetson Orin Nano / Orin NX System With PoE
Key Features:
- NVIDIA® Jetson Orin™ NX.
- GPU-Accelerated AI Computing.
- Fanless, Compact & Low Power.
- Supports 15W GbE PoE.
- JetPack Supported.
- -30°C to 50°C Operating Temperature.
Overview:
The Axiomtek AIE100-ONA/ONX is specifically designed to seamlessly integrate with the NVIDIA Jetson Orin NX system-on-module.
This powerful edge AI system is equipped with the latest NVIDIA Ampere architecture GPU and NVIDIA Deep Learning Accelerators, making it a formidable computing force.
Contact For Price
- Please Contact For Lead Time
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
AI Accelerator:
NVIDIA® Jetson Orin™ Nano (Up to 40 TOPS) (AIE100-ONA).
NVIDIA® Jetson Orin™ NX (Up to 100 TOPS) (AIE100-ONX).
CPU:
6 Core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 (AIE100-ONA / AIE100-ONX(8GB)).
8 Core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 (AIE100-ONX(16GB)).
GPU:
4GB: 512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores
8GB: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Chipset:
SoC integrated.
Memory:
4GB 64-bit LPDDR5 Onboard (AIE100-ONA).
8GB 128-bit LPDDR5 Onboard (AIE100-ONA / AIE100-ONX).
16GB 128-bit LPDDR5 Onboard (AIE100-ONX).
Storage:
1 x M.2 Key M 2280 With PCIe x4 NVMe SSD Slot.
Expansion:
1 x Full-size PCI Express Mini Card Slot (USB + PCI Express signal).
1 x SIM Slot.

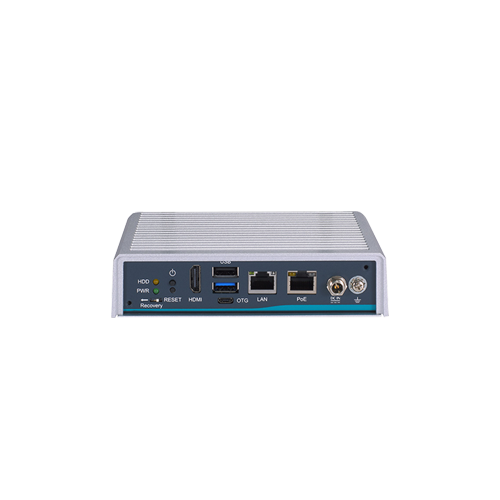

- I/O
COM:
N/A.
USB:
1 x USB 3.2 (Gen2).
1 x USB 2.0.
1 x Micro USB (For Image Flash).
Ethernet/PoE:
1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ Nano) (AIE100-ONA).
1 x 10/100/1000 Mbps Ethernet (via Jetson Orin™ NX) (AIE100-ONX).
1 x 10/100/1000 Mbps PoE (Intel® I210-IT) (Up to 15W).
GMSL:
N/A.
Display:
1 x HDMI 2.1 (With 4K2K Supported).
Digital I/O:
N/A.
Audio:
N/A.
- Power
Power Supply:
1 x 12 VDC screw-type power input connector.
- Environmental
Operating Temperature:
-25°C to +60°C (-13°F to +140°F) (AIE100-ONA-8GB).
-25°C to +70°C (-13°F to +158°F) (AIE100-ONA-4GB).
-25°C to +60°C (-13°F to +140°F) (25W Power Mode) (AIE100-ONX).
Humidity:
10% to 95% (non-condensing).
Vibration:
IEC 60068-2-64 (With SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis).
Shock:
IEC 60068-2-27 (With SSD: 50G, half-sine, 11 ms duration).
Certifications:
CE / FCC Class A / UKCA.
- Mechanical
Dimensions (W x D x H):
148.6 x 129.8 x 34.6 mm (5.85″ x 5.11″ x 1.36″).
Weight (Net/Gross):
0.9 kg (1.93 lb) / 1.8 kg (3.97 lb).
Mounting:
Wall / DIN-Rail / VESA Mount Kit.
- Other Features
EOS Support:
Linux Ubuntu 20.04 or later.
Watchdog Timer:
Built-in Orin NX (AIE100-ONX).
Built-in Orin Nano (AIE100-ONA).
Others:
1 x Recovery switch.
1 x Reset button.
1 x Power button.

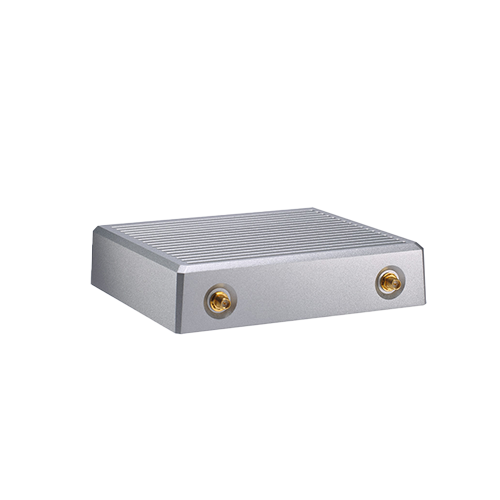

2 x SMA-type antenna connector.
