Industrial Jetson Orin Nano / Orin NX System
Key Features:
- -25°C to +70°C Operating Temp
- Analogue Audio (Optional)
- Isolated CAN (Inc. CAN FD)
- 5 x GPIO
- Wide DC Input
- Available Until 2032
Overview:
The Aetina AIE-KO21/31 and AIE-KN31/41 are compact, fanless Edge AI systems built on NVIDIA Jetson Orin Nano and Orin NX modules, offering up to 100 TOPS of AI performance.
Designed for industrial and embedded applications, they feature up to 8-core Arm CPUs, 16GB LPDDR5 memory, 128GB NVMe storage, and rich I/O including Gigabit Ethernet, USB 3.2, HDMI, GPIO, and CAN. With wide temperature support and flexible mounting, they are ideal for AI workloads in smart cities, automation, healthcare, and transportation.
Back-Order Lead Time:
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
Module Compatibility:
NVIDIA Jetson Orin Nano 4GB (AIE-KO21).
NVIDIA Jetson Orin Nano 8GB (AIE-KO31).
NVIDIA Jetson Orin NX 8GB (AIE-KN31).
NVIDIA Jetson Orin NX 16GB (AIE-KN41).
AI Performance:
20 TOPS (AIE-KO21).
40 TOPS (AIE-KO31).
70 TOPS (AIE-KN31).
100 TOPS (AIE-KN41).
GPU:
512 Core NVIDIA Ampere, with 16 Tensor Cores (AIE-KO21).
1024 Core NVIDIA Ampere, with 32 Tensor Cores (AIE-KO31 / AIE-KN31 / AIE-KN41).
CPU:
6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 (AIE-KO21 / AIE-KO31 / AIE-KN31).
8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 (AIE-KN41).
Memory:
4GB 64-bit LPDDR5 34GB/s (AIE-KO21).
8GB 128-bit LPDDR5 68GB/s (AIE-KO31).
8GB 128-bit LPDDR5 102.4 GB/s (AIE-KN31).
16GB 128-bit LPDDR5 102.4 GB/s (AIE-KN41).
Storage:
1 x M.2 M-Key 2242 (128GB built-in).
Expansion:
1 x M.2 E-Key 2230 (WiFi/BT).
1 x M.2 M-Key 2242 (128GB built-in).

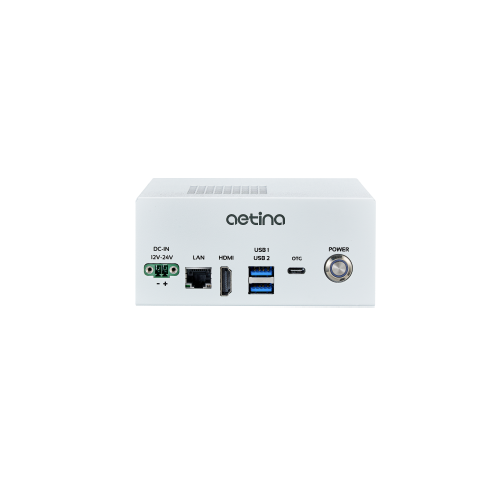

- I/O
Display:
1 x HDMI 2.0 (Type A).
Audio:
Line-out/Line-in/Mic (Optional with daughter board).
Ethernet:
1 x RJ-45 GbE.
USB:
2 x USB 3.2 (Gen2) (Type A) (Supports up to 10Gbps shared).
1 x OTG (Type-C).

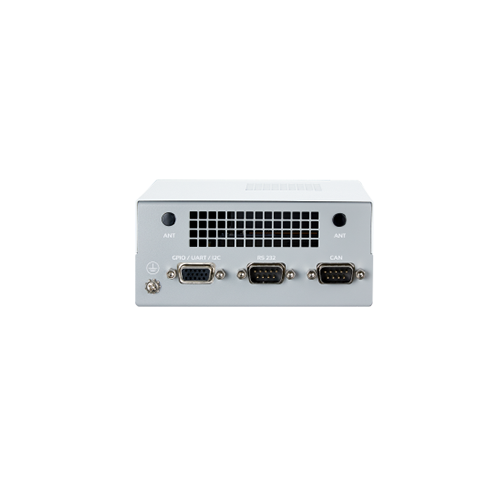

Other:
5 x GPIO.
1 x I2C.
1 x RS-232.
1 x UART.
1 x CAN (Isolation / Support CAN FD).
- Power
Input/Connector:
DC-in 12-24VDC / 2-Pin Terminal Block.
Power Consumption:
8.5 W Idle / 30.25* W Full Loading (AIE-KO21 / AIE-KO31).
7.6 W Idle / 40.25* W Full Loading (AIE-KN31 / AIE-KN41).
*For more test condition information, please refer to user manual.
- Environmental
Vibration:
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock:
10 G, IEC 60068-2-27, half sine, 11 ms duration.
Operating Temperature:
-25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow.
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Certification:
CE / FCC Class A / UKCA.
- Mechanical
Dimension (W x D x H):
123 x 99 x 56 mm (48.4 x 38.9 x 22 in).
Mounting:
Wall Mount (Optional) / Din Rail (Optional).
Weight (Net):
0.54 kg (1.2 lb).
- Other Features
Button Function:

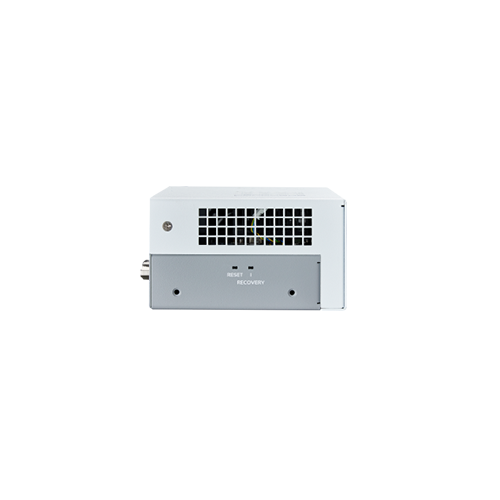

1 x Power Button / 1 x Recovery Button / 1 x Reset Button.
Software Support:
Linux (Support Jetpack 5.0 above).
