Ultra-Compact Fanless Edge AI Jetson Orin Nano / Orin NX System
Key Features:
- 2 x Gigabit LAN
- 8 x GPIO
- CAN Bus
- -20°C to +70°C Operating Temp
- Serial Port
- Available Until 2032
Overview:
Introducing the DLAP-211-Orin Series, an exceptional edge AI inference platform designed to deliver unparalleled high-performance computing capabilities. This highly adaptable solution caters to the demands of various industrial IoT applications, including smart cities, smart tourism initiatives, public and road safety, automated optical inspection, machine vision inspection, agriculture and aquaculture management, retail, healthcare, autonomous vehicles, robotics, and more. Powered by the Jetson Orin™ System-on-Module (SoM), the DLAP-211-Orin Series combines a highly optimized compute engine, a multi-instance GPU, and a dedicated deep-learning accelerator.
Contact For Price
- Please Contact For Lead Time
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
AI Performance:
70 TOPS (DLAP-211-Orin NX 8GB).
100 TOPS (DLAP-211-Orin NX 16GB).
20 TOPS (DLAP-211-Orin Nano 4GB).
40 TOPS (DLAP-211-Orin Nano 8GB).
21 TOPS (DLAP-211-JNX).
1.33 TFLOPS (DLAP-211-JT2).
472 GFLOPS (DLAP-211-Nano).
GPU:
1024-core NVIDIA Ampere GPU with 32 Tensor Cores (DLAP-211-Orin NX 8GB / DLAP-211-Orin NX 16GB).
512-core NVIDIA Ampere architecture GPU with 16 Tensor Cores (DLAP-211-Orin Nano 4GB).
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores (DLAP-211-Orin Nano 8GB).
384-core NVIDIA Volta™ architecture GPU with 48 Tensor Cores (DLAP-211-JNX).
256-core NVIDIA Pascal™ architecture GPU (DLAP-211-JT2).
128-core NVIDIA Maxwell™ architecture GPU (DLAP-211-Nano).
CPU:
6-core Arm® Cortex®-A78AE v8.2 64- bit CPU 1.5MB L2 + 4MB L3 (DLAP-211-Orin NX 8GB).
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 (DLAP-211-Orin NX 16GB).
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 (DLAP-211-Orin Nano 4GB / DLAP-211-Orin Nano 8GB).
6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6MB L2 + 4MB L3 (DLAP-211-JNX).
Dual-core NVIDIA Denver™ 2 64-bit CPU and quad-core Arm® Cortex®-A57 MPCore processor (DLAP-211-JT2).
Quad-core ARM® Cortex®-A57 MPCore processor (DLAP-211-Nano).
Memory:
4GB (DLAP-211-Orin Nano 4GB / DLAP-211-JT2 / DLAP-211-Nano).
8GB (DLAP-211-Orin NX 8GB / DLAP-211-Orin Nano 8GB / DLAP-211-JNX).
16GB (DLAP-211-Orin NX 16GB / DLAP-211-JNX).
Storage:
128GB M.2 2242 PCIe (Gen3x4) (DLAP-211-Orin NX 8GB / DLAP-211-Orin NX 16GB / DLAP-211-Orin Nano 4GB / DLAP-211-Orin Nano 8GB).
16GB eMMC 5.1 (DLAP-211-JNX / DLAP-211-JT2 / DLAP-211-Nano).
Expansion:
1 x PCIe Mini card slot.
1 x M.2 B Key 2242 socket.
1 x SD Card slot (DLAP-211-JNX / DLAP-211-JT2 / DLAP-211-Nano).
- I/O

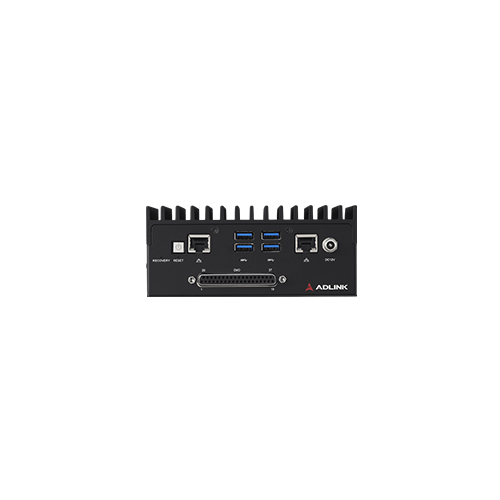

Front I/O Interfaces:
Button:
1 x Power / 1 x Reset / 1 x Recovery.
HDMI:
1 x Lockable.
USB:
4 x USB 3.0 (Type A).
Ethernet:
2 x 10/100/1000Mbps Ethernet.
Back I/O Interfaces:
USB:
1 x USB 2.0 (OTG).
Serial Port:
1 x COM RS-232/RS-422/RS-485.
CAN Bus:
1 x 2.0b (Not avaliable on the DLAP-211-Nano).
- Power
DC Input:
12V.
AC Input:
60W (45°C OP Temp Max) (DLAP-211-Orin NX 8GB / DLAP-211-Orin Nano 4GB / DLAP-211-Orin Nano 8GB).
60W (55°C OP Temp Max) (DLAP-211-JNX / DLAP-211-JT2 / DLAP-211-Nano).
84W (55°C OP Temp Max) (DLAP-211-Orin NX 16GB).
- Environmental
Operating Temperature:
-20°C to 70°C with 0.6m/s airflow (10W)
-20°C to 60°C with 0.6m/s airflow (15W)
-20°C to 50°C with 0.6m/s airflow (25W)
-20°C to 40°C with 0.6m/s airflow, at MAXN, Need to use industrial grade parts (Which Tamb spec is 85°C) for mPCIE interferface parts (DLAP-211-Orin NX 8GB / DLAP-211-Orin NX 16GB / DLAP-211-Orin Nano 4GB / DLAP-211-Orin Nano 8GB).
Need to use industrial grade parts (Which Tamb spec is 85°C) for mPCIE interferface parts (DLAP-211-JNX / DLAP-211-JT2 / DLAP-211-Nano).
Storage Temperature:
-40°C to +85°C.
Humidity:
~95% @ 40°C (Non-condensing) (Optional with fanless solution) without adapter.
Vibration:
Operating 5Grms, 5-500Hz, 3 axes w/M.2 SSD.
Shock:
Operating 100G, half sine 11ms duration w/ SD, M.2 SSD.
ESD:
Contact ± 4kV, Air ± 8kV.
Regularity:
CE & FCC Class B (EN61000-6-4/-6-2) / CE-LVD & UL by CB / FCCID.
- Mechanical
Dimensions (W x D x H):
148mm x 120mm x 52mm (DLAP-211-JNX / DLAP-211-JT2 / DLAP-211-Nano).
148mm x 120mm x 52mm (DLAP-211-Orin NX/Orin Nano).
148mm x 120mm x 64mm (DLAP-211-Orin NXS/Orin NanoS).
Weight:
1.7kg
Mounting:
VESA / DIN Rail (Optional).
- Other Features
SMA Antenna Connector:
4.
WDT:
WDT Supported.
Operating System Support:
Linux® Ubuntu.
