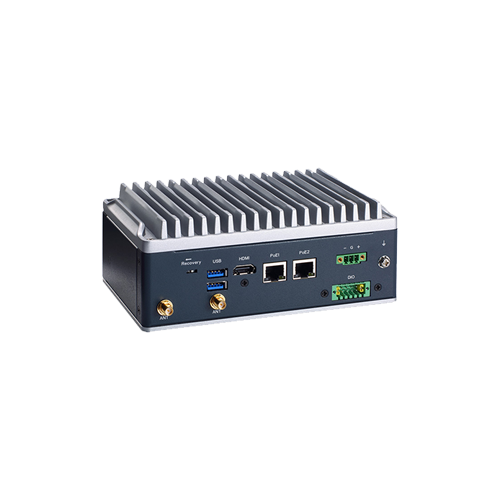

Fanless Edge AI Jetson Orin NX System With 2 x PoE
Key Features:
- 2 x PoE Ports
- 4CH GMSL2 Inputs (Optional)
- 4-in/4-out Digital I/O
- 3 x Expansion Slots
- Wide DC Input
- Available Until 2032
Overview:
The Axiomtek AIE510-ONX is specifically designed to seamlessly integrate with the NVIDIA Jetson Orin NX system-on-module. This powerful edge AI system is equipped with the latest NVIDIA Ampere architecture GPU and NVIDIA Deep Learning Accelerators, making it a formidable computing force. It supports dual PoE for camera/sensor connectivity and 4 GMSL (Fakra-Z) channels for automotive cameras.
Contact For Price
- Please Contact For Lead Time
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
AI Accelerator:
NVIDIA® Jetson Orin™ NX 16GB (100 TOPS).
CPU:
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3.
GPU:
1024-core NVIDIA Ampere GPU with 32 Tensor Cores.
Memory:
16GB 128-bit LPDDR5 Onboard.
Storage:
1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot.
Expansion:
1 x M.2 Key E 2230 slot for Wi-Fi 6E.
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) for Wi-Fi/LTE.
1 x M.2 Key B 3042/3052 slot for 5G/LTE.
1 x Nano SIM slot.
- I/O
COM:
1 x DB9 for COM & CAN.
USB:
2 x USB 3.2 (Gen2).
Ethernet/PoE:
1 x 10/100/1000 Mbps PoE (via Orin™ NX).
1 x 10/100/1000/2500 Mbps PoE (Intel® I226-IT).
Display:
1 x HDMI 2.1 with 4K2K supported.
GMSL:
4 x Fakra-Z connector for GMSL1/2 automotive camera (Only for AIE510-ONX-GMSL).
Digital I/O:
1 x Isolated DIO (4-in/4-out).
- Power
Power Supply (Input):
9 to 36 VDC (Typical 12/24 VDC) with ignition power control.
Inrush Current:
0.69A / 3.08A.
- Environmental
Operating Temperature (25W Power Mode):
-25°C to +60°C (-13°F to +140°F).
Relative Humidity:
10% to 95% Relative humidity (Non-condensing).
Vibration:
IEC 60068-2-64 (With SSD: 3Grms STD, random, 5 to 500 Hz, 1 hr/axis).
Shock:
IEC 60068-2-27 (With SSD: 50G, half-sine, 11 ms duration).
Certifications:
CE / FCC Class A / UKCA / E-Mark.
- Mechanical
Dimensions (W x D x H):
180 x 124 x 71.7 mm (7.08″ x 4.88″ x 2.82″) (AIE510-ONX-16GB).
180 x 124 x 80.7 mm (7.08″ x 4.88″ x 3.17″) (AIE510-ONX-GMSL).
Weight (Net/Gross):
1.4 kg (3.15 lb) / 3.1 kg (6.83 lb) (AIE510-ONX-16GB).
1.5 kg (3.31 lbs) / 3.3 kg (7.28 lb) (AIE510-ONX-GMSL).
Mounting:
Wall / DIN-Rail / VESA Mount kit.
- Other Features
EOS Support:
Linux Ubuntu 20.04 or later.
Watchdog Timer:
Built-in Orin NX.
