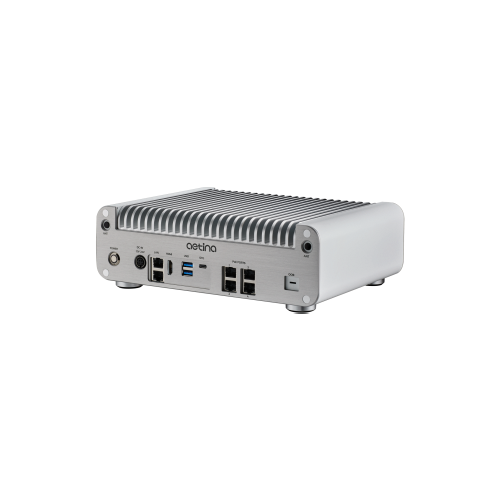

NVIDIA Jetson AGX Orin 32GB Edge AI Computer (with OOB module)
- Compact Fanless System (with OOB).
- Deep Learning Acceleration.
- NVIDIA® Jetson AGX Orin.
- 32GB LPDDR5 Memory.
- 64GB eMMC 5.1 Storage.
- -20 to +55°C Operating Temperature.
The DLAP-411-Orin Edge AI Inference Platform, which is powered by NVIDIA® Jetson AGX Orin™, is a high-performance platform created for the deployment of AI-powered systems at the edge. This platform provides the necessary computing power for demanding AI applications.
- AI Accelerator
-
Jetson AGX Orin 32GB.
- Processor
-
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3.
- Graphics
-
NVIDIA Ampere architecture with 1792 NVIDIA® CUDA® cores and 56 Tensor Cores.
- Memory
-
32GB 256-bit LPDDR5.
- Storage
-
64GB eMMC 5.1.
- I/O
-
Front Panel I/O:
1 x Power Button.
1 x Reset Button.
1 x Recovery Button.
1 x HDMI (Max. resolution 3840×2160 @ 60Hz).
4 x USB 3.0 (Type-A).
4 x 10/100/1000Mbps Ethernet (4 GbE ports with PoE, IEEE 802.3af/at).
Mic-in / Line-out.
1 x D-sub 37-pin connector (GPIO,I2C,SPI,UART).Back Panel I/O:
1 x USB 3.0 Type-C (OTG).
1 x COM RS-232/RS-422/RS-485 (DB9).
1 x 2.0b (DB9).
- Expansion
-
1 x M.2 M key 2242 and 2280 PCIe Gen4.
1 x M.2 B key 3042 and 3052 for 5G/LTE M.2 E key 2230 for Wifi.
1 x Micro SIM Slot (Support).
Support Ethernet and Wifi, monitoring and managing at remote locations (Thermal sensor, remote power on/off, restart, monitor debug port detection device status).
- Other Features
-
LED’s:
6 x User defined LEDs.Mounting:
Wall mount, VESA DIN rail (Optional).Thermal Sensor:
1 x Thermal sensor.F/W Support:
WDT supported.
Wake on LAN supported.
- Power
-
24V (OVP,OCP).
160W Power adapter.
1 x Power ON/OFF Button (AT/ATX , Default: AT).
- Environmental
-
Operating Temperature:
-20C to 60C with 0.6m/s airflow, at 40W (not include wifi module, M.2 SSD)
-20C to 55C with 0.6m/s airflow, at MAXN (not include wifi module, M.2 SSD)Storage Temperature:
-40°C to +85°C.Humidity:
~95% @ 40°C (Non-condensing, optional with fanless solution).Vibration:
Operating 5Grms, 5-500Hz, 3 axes w/M.2 SSD.Shock:
Operating 100G, half sine 11ms duration w/ SD, M.2 SSD.ESD:
Contact ± 4kV, Air ± 8kV.
- OS Support
-
Linux.
- Dimensions
-
(W) 175 x (D) 145 x (H) 85 mm.
- Weight
-
TBD.
- Certification
-
CE & FCC class B, (EN61000-6-4/-6-2), CE-LVD & UL by CB, FCCID.
