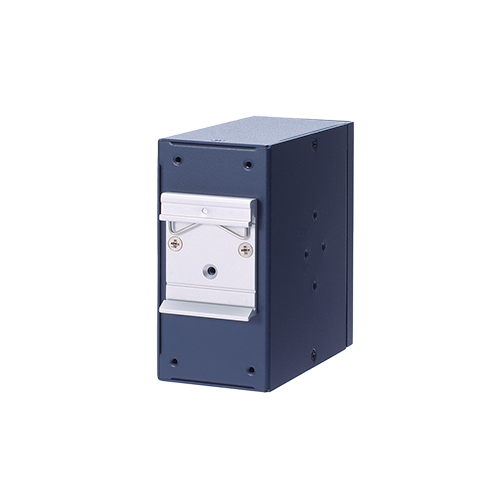

DIN-Rail Fanless Embedded PC With Intel® Celeron® N3350 CPU
Key Features:
- Super Compact Size (Fanless & Cableless)
- Intel® Celeron® N3350 Processor
- COM / 4 USB & 2 GbE LAN
- 9 to 36 VDC Wide Power Range
- OVP, UVP, OCP & RPP Power Protection
- Intelligent Remote Monitoring Software
Overview:
The Axiomtek ICO110 is an ultra-compact, fanless DIN-rail embedded computer designed for industrial applications requiring reliable performance in space-constrained environments.
The ICO110 is ideal for applications in automation, transportation, and IoT, offering a balance between performance and compactness.
Contact For Price
- Please Contact For Lead Time
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
CPU:
Intel® Celeron® N3350 (2 Cores @ 1.1 GHz / 6W TDP).
Chipset:
SoC Integrated.
Memory:
1 x DDR3L-1600 SO-DIMM (Up to 8GB).
Expansion:
1 x Half-size Rev. 1.2 PCI Express Mini Card slot (mSATA).
Storage:
1 x mSATA (Occupied 1 x PCI Express Mini Card slot).
- I/O
COM:
1 x RS-232/422/485.
USB:
4 x USB 3.0.
Ethernet:
2 x RJ-45 isolated GbE LAN (Realtek RTL8111HN for ICO110-N3350-AC / Realtek RTL8119I for ICO110-N3350-AW).
PoE:
Isolation voltage (1.5 kV).
Display:
1 x HDMI.
- Power
1 x Terminal block, 9 to 36 VDC (12 to 24 VDC Typical).
- Environmental
Construction:
Extruded aluminum and heavy-duty steel (IP30).
Operating Temperature (ICO110-N3350-AC):
0°C to +50°C (+32°F to +122°F).
Operating Temperature (ICO110-N3350-AW):
-40°C to +70°C (-40°F to +158°F).
Relative Humidity:
0% to 95%.
Vibration:
2 Gms with storage (5 to 500Hz, X/Y/Z Direction) (Random / Operating).
Certifications:
CE (Class A), FCC (Class A).
CE/FCC EN 55035 (Class A), FCC part 15 B (Class A).
- Mechanical
Dimensions (W x D x H):
48 x 100 x 100 mm (1.89″ x 3.94″ x 3.94″).
Weight (Net/Gross):
0.3 kg (0.67 lb) / 0.45 kg (0.99 lb).
Mounting:
DIN-rail.
Wall Mounting.
- Other Features
EOS Support:
Windows® 10 IoT.
Linux
Software Support:
Axiomtek EAPI.
Watchdog Timer:
255 levels, 1 to 255 sec.
