Fanless Embedded Computer With Intel® Arrow Lake-S Core™ Ultra 200S Series Processors
Key Features
- Fully Modular & Expandable
- Arrow Lake-S Ultra 200S (65W)
- Up to 96GB DDR5 Memory
- Optional Expansion (CMI & CFM)
- EN50155 (EN50121-3-2) Certified
- -40°C to 60°C Operating Temperature
Pricing Available Upon Request
Need Assistance?
- +44 (0)1527 512 400
Overview

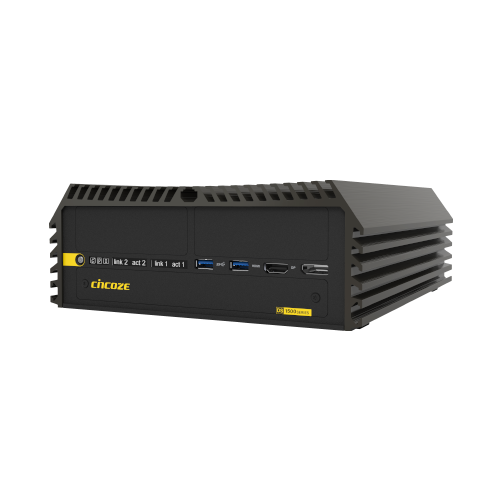

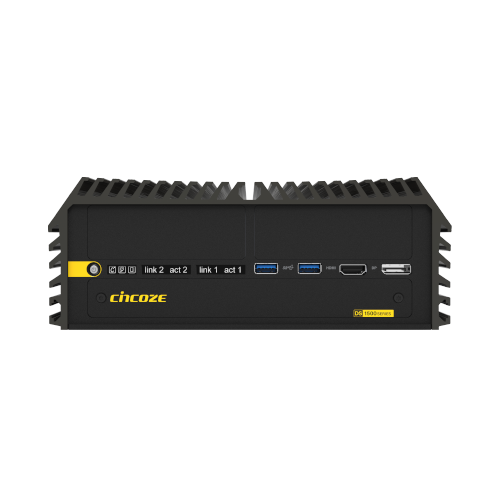

The DS-1500 series is a high-performance, expandable, rugged embedded computer, supporting modular I/O expansion and up to two PCI/PCIe slots. It has international certifications for stable and reliable performance in harsh environments, making it perfect for smart manufacturing, railway, and more.
Support
- Need Help? Get In Touch
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
System
Processor (Arrow Lake-S Ultra 200S Series CPU):
Intel® Core™ Ultra 9 285 (24 Cores) (Up to 5.6 GHz) (65W TDP).
Intel® Core™ Ultra 9 285T (24 Cores) (Up to 5.4 GHz) (35W TDP).
Intel® Core™ Ultra 7 265 (20 Cores) (Up to 5.3 GHz) (65W TDP).
Intel® Core™ Ultra 7 265T (20 Cores) (Up to 5.3 GHz) (35W TDP).
Intel® Core™ Ultra 5 245 (14 Cores) (Up to 5.1 GHz) (65W TDP).
Intel® Core™ Ultra 5 245T (14 Cores) (Up to 5.1 GHz) (35W TDP).
Intel® Core™ Ultra 5 225 (10 Cores) (Up to 4.9 GHz) (65W TDP).
Intel® Core™ Ultra 5 225T (10 Cores) (Up to 4.9 GHz) (65W TDP).
Chipset:
Intel W880.
Memory:
2 x DDR5 SODIMM/CSODIMM Socket (Support Un-buffered & ECC Type).
Supports Up to 96GB (6400MHz) (Ultra 9 / 7).
Supports Up to 96GB (5600MHz) (Ultra 5).
Graphics Engine:
Integrated Intel® Xe LPG Graphics.
Maximum Display Output:
Supports Quad Independent Display.
Storage (2.5″ SSD / HDD):
1 x 2.5″ Front Accessible SATA HDD/SSD Bay (SATA 3.0).
1 x 2.5″ Internal SATA HDD/SSD Bay (SATA 3.0).
Storage (M.2 Key B Socket):
1 x M.2 Key B Type 3042/3052 Socket (PCIe Gen 4×2 / USB3.2 Gen2x1 / SATA).
Support 5G / GNSS / Storage / Add-on Card.
Expansion (M.2 Key B Socket):
2 x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3×2 / SATA).
Support GNSS / Storage / Add-on Card Expansion.
Expansion (M.2 Key M Socket):
1 x M.2 Key M Type 2280 Socket (PCIe Gen3 x4 / SATA).
Support Storage / Add-on Card Expansion.
SIM:
2 x SIM Socket.
CMI (Combined Multiple I/O) Socket:
2 x High Speed CMI Interface for optional CMI Module Expansion.
2 x Low Speed CMI Interface for optional CMI Module Expansion.
CFM (Control Function Module) Socket:
1 x CFM IGN Interface for optional CFM-IGN Module Expansion.
1 x CFM-TPM Interface for optional CFM-TPM Module Expansion.
RAID:
Support RAID 0/1/5/10.

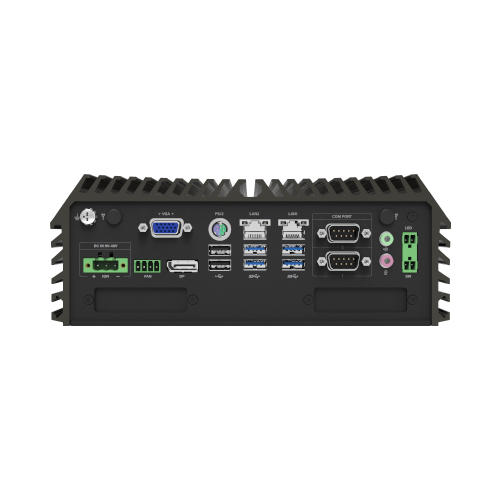

I/O
VGA:
1 x VGA Connector (1920 x 1200 @ 60Hz).
DisplayPort:
2 x DP Connector (4096 x 2304 @ 60Hz).
Support cable switch HDMI (4096 x 2160 @ 30Hz).
* Verified maximum resolution (3840 x 2160 @ 60Hz).
HDMI:
1 x HDMI Connector (4096 x 2160 @ 30Hz).
* Verified maximum resolution (3840 x 2160 @ 30Hz).
LAN:
1 x 2.5 GbE LAN (RJ45) (GbE1: Intel® I225).
1 x GbE LAN (RJ45) (GbE2: Intel® I219).
COM:
2 x RS-232/422/485 with Auto Flow Control (Supports 5V/12V) (DB9).
USB:
2 x 10Gbps USB 3.2 Gen2x1 (Type A).
4 x 5Gbps USB 3.2 Gen1x1 (Type A).
2 x 480Mbps USB 2.0 (Type A).
PS/2:
1 x PS/2 (6 Pin Mini-DIN Female Connector).
Power
Power Button:
1 x ATX Power On/Off Button.
Power Mode Switch:
1 x AT/ATX Mode Switch.
Power Input:
9 – 48V DC (3-pin Terminal Block).
Remote Power On/Off:
1 x Remote Power On/Off (2-pin Terminal Block).
Remote Power LED:
1 x Remote Power LED (2-pin Terminal Block).
Max. Power Consumption (35W CPU):
163W.
Max. Power Consumption (65W CPU):
262.8W.
Test conducted with CPU, 1 x RAM, and 1 x storage.
100% load during burn-in testing.
Inrush Current (Peak) (35W CPU):
5.812 A @ 24V.
Inrush Current (Peak) (65W CPU):
5.983 A @ 24V
Reverse Power Input Protection:
Yes.
Over Voltage Protection:
51~58V Protection Range.
Protection Type:
Shut down operating voltage, re-power on at the preset level to recover.
Over Current Protection:
15A.
CMOS Battery Backup:
SuperCap Integrated for CMOS Battery Maintenance-free Operation.
MTBF:
307,224 Hours (Database: Telcordia SR-332 Issue3, Method 1, Case 3).
Environmental
Operating Temperature (35W TDP Processor):
-40°C to 60°C (-40℉ to 140℉).
Operating Temperature (65W TDP Processor):
-40°C to 50°C (-40℉ to 122℉) With External Fan Kit.
With extended temperature peripherals (Ambient with air flow).
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14.
Storage Temperature:
-40°C to 85°C (-40℉ to 185℉).
Relative Humidity:
95%@60°C (Non-Condensing).
Shock:
MIL-STD-810H.
Vibration:
MIL-STD-810H.
EMC:
CE
UKCA
FCC
ICES-003 (Class A).
EMI:
CISPR 32 Conducted & Radiated (Class A).
EN/BS EN 50121-3-2 Conducted & Radiated (Class A).
EN/BS EN IEC 61000-3-2 Harmonic current emissions (Class A).
EN/BS EN61000-3-3 Voltage fluctuations & flicker.
FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated (Class A).
EMS:
EN/IEC 61000-4-2 ESD (6 kV Contact) (8kv Air).
EN/IEC 61000-4-3 RS (80 MHz to 1000 MHz) (20 V/m).
EN/IEC 61000-4-4 EFT (2 kV AC Power) (2 kV Signal).
EN/IEC 61000-4-5 Surges (2 kV AC Power).
EN/IEC 61000-4-6 CS (10V).
EN/IEC 61000-4-8 PFMF (50 Hz, 1A/m).
EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions (0.5 cycles at 50 Hz).
Railway (EMC):
EN 50155 (2021 Clause 4.4.6, 13.4.9).
EN 50121-1 (2017).
EN 50121-3-2 (2016 + A1: 2019).
Fire Protection:
EN 45545-2.
Mechanical
Dimension (W x D x H):
227 x 261 x 88 mm.
Weight Information:
4.9 kg.
Mechanical Construction:
Extruded Aluminum with Heavy Duty Metal.
Mounting:
Wall Mount
Physical Design:
Fanless Design.
Cableless Design.
Jumper-less Design.
Unibody Design.
Other Features
BIOS:
AMI BIOS.
External FAN Connector:
1 x External FAN Connector (4-pin Terminal Block) (Support Smart Fan by BIOS).
Power Ignition Sensing:
Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module).
TPM:
Support Discrete TPM2.0 (With Optional CFM Module).
Clear CMOS Switch:
1 x Clear CMOS Switch.
Reset Button:
1 x Reset Button.
Instant Reboot:
Support 0.2sec Instant Reboot Technology.
Watchdog Timer:
Software Programmable Supports 256 Levels System Reset.
Antenna Holes:
2.
Operating System Support:
Windows®11 / Windows®10.
Linux Ubuntu 24.04.
