7th Gen Intel® Core™ Fanless Embedded Transportation Computer
Key Features
- Fanless Rugged Design
- 7th Gen Intel Core / Celeron CPU
- Wide Input Power (12/24V) (24 - 110V)
- Dual Swappable 2.5″ SATA Drives
- Modular I/O (COM, LAN, CAN, PoE Via VAM Slots)
- Certified For Transport (EN 50155 & EN 45545-2)
Overview

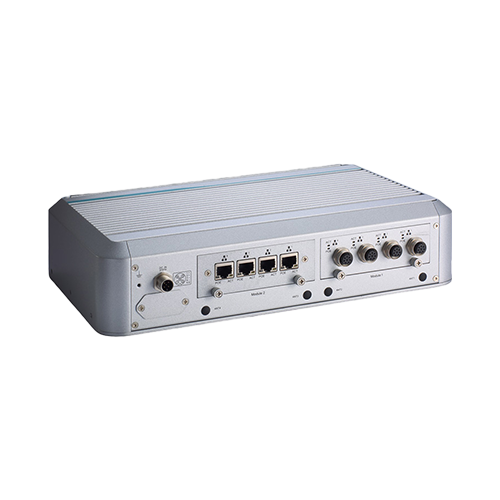

The Axiomtek tBOX500-510-FL is a rugged, fanless embedded PC built for transport use (rail, vehicle, marine), powered by 7th-gen Intel Core or Celeron CPUs. It supports a very wide voltage input (12–110 V) and operates in extreme temperatures (–40 °C to +70 °C).
With modular I/O via value-added module (VAM) slots (COM, CAN, PoE, etc.), dual swappable 2.5″ SATA drives, and up to 32 GB DDR4 memory, it’s ideal for flexible, high-reliability onboard applications.
Pricing Available Upon Request
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Processor:
Intel® Core™ i7-7600U (2 Cores @ 2.8 GHz | 15W TDP).
Intel® Core™ i5-7300U (2 Cores @ 2.6 GHz | 15W TDP).
Intel® Core™ i3-7100U (2 Cores @ 2.4 GHz | 15W TDP).
Intel® Celeron® 3965U (2 Cores @ 2.2 GHz | 15W TDP).
Chipset:
SoC integrated
Memory:
2 x DDR4-1866/2133 SO-DIMM (Up to 32GB).
Storage:
2 x Swappable 2.5″ SATA Drives (9.5 mm Height) (Intel® RAID 0/1 Supported).
1 x mSATA (Occupied 1 x PCI Express Mini Card Slot).
Expansion:
1 x Full Size Rev.1.2 PCI Express Mini Card Slot (mSATA/PCIe).
2 x Full Size Rev.1.2 PCI Express Mini Card Slot (USB/PCIe with SIM Socket).
2 x Value-added Module Slot.
I/O
Serial (COM):
1 x DB9 Serial Console or RS-232/422/485.
USB:
4 x USB 3.0.
PoE:
Internal PoE SKUs Equipped With VAM701/703/705/707.
Can Support up to 8 Configurable M12/RJ-45 PoE Ports.
PoE (802.3af 15.4W Per Port).
PoE+ (802.3at 30W Per Port).
Ethernet:
1 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT).
Display:
1 x DVI-I (Up to 1920 x1200 @ 60Hz) (1 x VGA & 1 x DVI Included).
CANbus (Optional):
Available from I/O Module.
Digital I/O (Optional):
Available from I/O Module.
Audio:
1 x Mic Input.
1 x Line Output.
Power
Power Supply (Railway):
1 x M12, 24 to 110 VDC.
Power Supply (Vehicle):
1 x Terminal Block (12/24 VDC With Smart Ignition).
Power Supply (Marine):
1 x Terminal Block (24 VDC).
Environmental
Construction:
Aluminum extrusion and heavy-duty steel (IP30).
Operating Temperature:
-40°C to +70°C (-40°F to +158°F) With Wide Temperature Peripheral
Relative Humidity:
0% to 95% (Non-condensing).
Vibration:
3 Grms w/ SSD (5 to 500Hz, X/Y/Z direction; random, operating).
1.5 Grms w/ HDD (5 to 500Hz, X/Y/Z direction; random, operating).
2 Grms w/ HDD & Anti-Vibration Kit (5 to 500Hz, X/Y/Z direction; random, operating).
MIL-STD-810G, Method 514.6C-VI Category 4 compliant.
Shock:
EN(IEC) 61373 category 1 class B, half-sine pulse, 5g, 30ms (longitudinal direction), 3g, 30ms (vertical/transverse direction).
Certifications:
CE (Class A), LVD, FCC (Class A), EN 50155, EN 45545-2, IEC 60945 certified.
ISO 7637-2 compliant.
Mechanical
Dimensions:
(W) 321 x (D) 210.2 x (H) 73.3 mm (Without Wall Mount).
Weight:
3.5 kg (Net) / 5.1 kg (Gross).
Mounting:
Wall Mount.
Other Features
Operating System Support:
Windows® 10 (64-bit).
Linux.
Watchdog Timer:
255 Levels (1 to 255 Seconds).
Security (Optional):
TPM 2.0.
Buttons / Switches:
1 x Reset Button.
1 x Remote Switch.
Antenna:
4 x Antenna Opening.
