Axiomtek tBOX324-894-FL (Main Image)

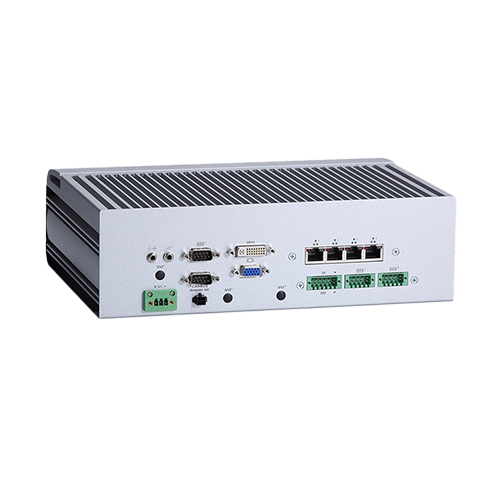

Axiomtek tBOX324-894-FL (Ports)

Fanless Transportation Computer With 7th Gen Intel Core Processor

SKU: tBOX324-894-FL
On Request
Contact Us

Key Features

  • 7th Gen Intel® Core™ i7/i5/i3 CPU.
  • 32GB DDR4 Memory Supported.
  • Wide Operating Temperature.
  • Flexible 12/24/110V DC Input With Smart Ignition.
  • Dual Swappable Drives.
  • Certified to EN 50155, EN 45545-2, E-Mark, DNV 2.4, IEC 60945 Standards.

Overview

The Axiomtek tBOX324-894-FL is a high-performance, fanless embedded system engineered for the toughest transportation, railway, and marine environments.

Powered by 7th Gen Intel® Core™ processors, it delivers reliable computing power in extreme conditions with an impressive operating temperature range of -40°C to +70°C. Designed for versatility, it supports 12/24/110V DC input with intelligent ignition control, up to 32GB DDR4 memory, and multiple expansion options for enhanced connectivity.

With industry certifications including EN 50155, EN 45545-2, E-Mark, DNV 2.4, and IEC 60945, the tBOX324-894-FL ensures exceptional durability, stability, and performance, making it an ideal solution for mission-critical applications in intelligent transportation and industrial edge computing.

Pricing Available Upon Request

Datasheet
Specifications
Documentation & Support
Quote

Need Assistance?

  • +44 (0)1527 512 400

Specifications

System

Processor:
Intel® Core™ i7-7600U (2.8 GHz).
Intel® Core™ i5-7300U (2.6 GHz).
Intel® Core™ i3-7100U (2.4 GHz).

Chipset:
SoC Integrated.

Memory:
2 x DDR4-1866/2133 SO-DIMM
Up to 32GB Supported.

BIOS:
AMI.

Storage:
2 x Swappable 2.5″ SATA Drive (9.5 mm height) (Intel® RAID 0/1 supported).
1 x CFast™.

Expansion:
2 x Full-size Rev.1.2 PCI Express Mini Card Slot (USB/PCIe).
1 x Full-size Rev.1.2 PCI Express Mini Card Slot (USB/PCIe with SIM socket).

COM:
1 x DB9 isolated RS-232/422/485.
2 x Isolated RS-232/422/485 terminal block (2 kV isolation voltage).

USB:
4 x USB 3.0.

PoE:
N/A.

Ethernet (Railway):
4 x M12 A-coded 10/100/1000 Mbps Ethernet (Intel® I210-IT).

Ethernet (Marine/Vehicle):
4 x RJ-45 10/100/1000 Mbps Ethernet (Intel® I210-IT).

Display:
1 x DVI-I (Up to 1920 x 1200 @ 60Hz) (1 x VGA and 1 x DVI-D included).
1 x VGA.

CANbus:
1 x DB9 Isolated CANBus 2.0 A/B (2 kV Isolation Voltage).

Digital I/O:
1 x Terminal Block Isolated DIO 4-in/4-out (2 kV Isolation Voltage).

Audio:
1 x Mic Input.
1 x Line Output.

Power Supply (Railway):
1 x M12 (24/110 VDC).

Power Supply (Vehicle):
1 x Terminal block (12/24 VDC with Smart Ignition).

Power Supply (Marine):
1 x Terminal block (24 VDC).

Operating Temperature:
-40°C to +70°C (-40°F to +158°F) With Wide Temperature Peripheral.

Relative Humidity:
0% to 95% (Non-condensing).

Vibration:
3 Grms With SSD (5 to 500Hz) (X/Y/Z direction | Random | Operating)
1 Grms With HDD (5 to 500Hz) (X/Y/Z direction | Random | Operating)
2 Grms With HDD & Anti-Vibration Kit (5 to 500Hz) (X/Y/Z direction | Random | Operating)

Vibration (MIL-STD-810G):
Method 514.6C-VI Category 4 Compliant.

Vibration (EN 50155):
EN (IEC) 61373 Category 1 (Class B)

Vibration (DNV 2.4/IEC 60945):
IEC 60068-2-6.

Shock (EN 50155):
EN (IEC) 61373 Category 1 (Class B) / Half-sine Pulse / 5g / 30ms (Longitudinal Direction) / 3g / 30ms (Vertical/Transverse Direction).

Shock (DNV 2.4/IEC 60945):
IEC 60068-2-1 / IEC 60068-2-2 / IEC 60068-2-6 / IEC 60068-2-30.

Construction:
Aluminum Extrusion & Heavy-duty Steel (IP30).

Certification:
CE (Class A), FCC (Class A), EN 50155, EN 45545-2, E-Mark, DNV 2.4 & IEC 60945 Certified

Dimensions:
(W) 288.5 x (D) 211.3 x (H) 85.75 mm.

Weight:
5 kg (Net) / 6.65 kg (Gross).

Mounting:
Wall Mount.

Operating System Support:
Windows® 10 (64-bit).
Linux.

Watchdog Timer:
255 levels (1 to 255 sec).

Buttons / Switches:
1 x Reset Button.
1 x Remote Switch.

Antenna:
3 x Antenna Opening.
