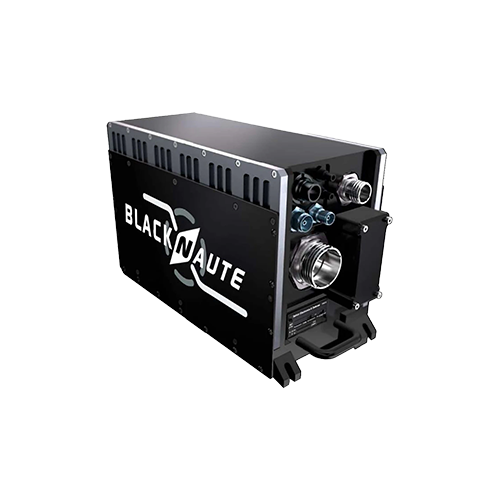

BlackNaute™ Resilient PNT Solution For High-end Military Airborne Carriers
Key Features
- Resilient PNT In GNSS-Denied Areas.
- Built-in Atomic Clock For Precise Timing.
- <0.4 NM/hr Inertial Accuracy.
- Compact 7 L / 7 kg Design.
- Dual GNSS (GPS & Galileo) With M-Code/PRS.
- MIL-STD-810 Rugged & Reliable.
Pricing Available Upon Request
Need Assistance?
- +44 (0)1527 512 400
Overview
Designed for existing in-service EGI upgrade and compatibility with open architecture requirements.
Perfectly suited for military helicopters, aircraft, fighter jets and UAVs, the BlackNaute™ Embedded GNSS and Time INS (EGTI) sets the new standard for resilient navigation performance.
Support
- Documentation & Drivers
- Need Help? Get In Touch
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
System
GNSS:
Dual-constellation (GPS C/A SBAS, M-Code, Galileo PRS).
Acquisition (Direct-Y & Direct-M, Direct-PRS).
Atomic Clock:
Precise Time (Embedded Atomic Clock).
IDM:
Anti-spoofing (Interference Detection & Mitigation)
Anti-jamming (Patented Function).
Function:
Alignment Modes (Gyrocompass, In-Flight/In-Motion, On-Ship, Stored Heading, Fast Realign).
Integrity (RAIM/AAIM).
Alignment Time:
4 Min (Longer Alignment Will Improve Performance).
TCEP50/RMS (Pure Inertial):
Attitudes (0.01°).
Heading (0.06°lat±60° / 0.15°lat±78°).
Horizontal Velocities (Per axis) (<0.6m/s).
Horizontal Position (<0.4Nm/h).
Coasting (60 min RNP0.3).
TCEP50/RMS (Hybrid GNSS/Inertia):
Attitudes (0.002°).
Heading (0.02°lat±60° / 0.05°lat±78°).
Horizontal Velocities (Per axis) (<0.05m/s).
Horizontal Position (GNSS Accuracy).
Coasting (60 min RNP0.3).
*Time Server outputs configurable.
I/O
A429 Input:
9 (Including External Reference Alignment).
A429 Output:
6 (Including Redundant Blended INS/GNSS, Free Inertial & GNSS Only).
Ethernet 100Mbs:
1 (Operational NAV, Maintenance, Instrum).
RS422 Input:
3 (DAGR, CRPA compatible, dGNSS provision, ToD external Time Server init.).
RS422 Output:
2 (CRPA Beamforming Provision).
1553B:
Bus A / Bus B.
1 PPS:
1 In (External Time Server initialisation) / 2 Out.
Precise Timing:
1PPS x3, IRIG-B x2*, HQ x2*, 10MHz x2, Ethernet 1Gbs NTP/PTP x1.
External Time Server init:
1PPS.
Key Loading:
GPS DS101 / PRS Loading.
RF:
1 (CRPA Compatible).
Power
Environmental
Certification:
TSO C-145d / DO-229.
TSO C-201 / DO-334.
TSO C-220 / DO-384.
SW DO-178C / DAL A.
AEH DO-254 / DAL A.
Civil Procedure LPV Approach / ADS-B.
Environmental Qualifications:
MIL-STD-810 Including Gunfire, Catapult-Take-Off, Arrested Landing Stocks.
MTBF:
>33,000FH.
Mechanical
SWaP:
7L/7kg.
Other Features
