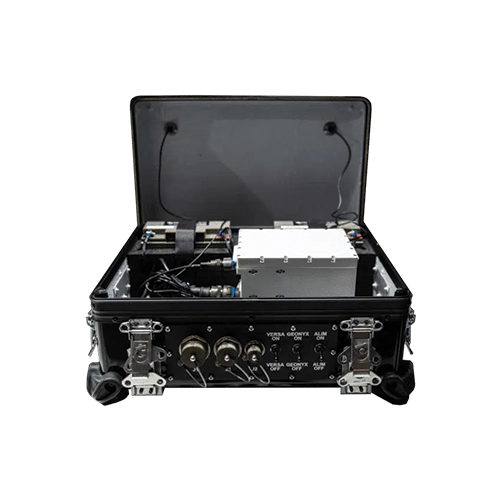

NAVKITE™ Inertial Navigation + Resilient Time & Frequency
Key Features
- GNSS, RS422, NMEA 2000, Ethernet
- SP, HP & XP Performance Available
- Integrated Autonomous Navigation
- ITAR Free
- IP67 Protection
- HRG Crystal™ Gyro Technology
Overview
Operating without GNSS due to jamming, spoofing, or signal loss is a growing challenge. The NAVKITE, developed by Safran Electronics & Defense, combines the compact GEONYX™ M inertial system and VersaSync® time platform to deliver resilient, precise PNT data.
Designed for complex, high-risk environments, the Safran NAVKITE ensures mission continuity with trusted geolocation and timing, both on land and at sea.
Pricing Available Upon Request
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Built in option:
Geonyx in SP, HP, and XP performance.
OCXO High Performance.
GNSS support (Navigation):
GPS.
GLONASS.
Network:
System configuration (VersaSync, Geonyx-M).
Status message Monitoring.
Gyro Technology:
HRG Crystal™.
I/O
Flexible Interfaces:
Embedded GNSS receiver.
RS422.
Ethernet.
Power
Battery Charger:
Power for charging battery.
System Autonomy:
12 hours on batteries.
Environmental
IP Protection:
IP67.
Shock:
20 g, 11 ms following MIL-STD 810G standard, method 516.7 Procedure 1.
Mechanical
Dimensions (W x D x H):
538 x 415 x 300 mm.
Weight:
29 kg (Including batteries).
Other Features
Switches:
1 x Power switch DC.
1 x Power switch Geonyx-M.
1 x Power switch VersaSync.
