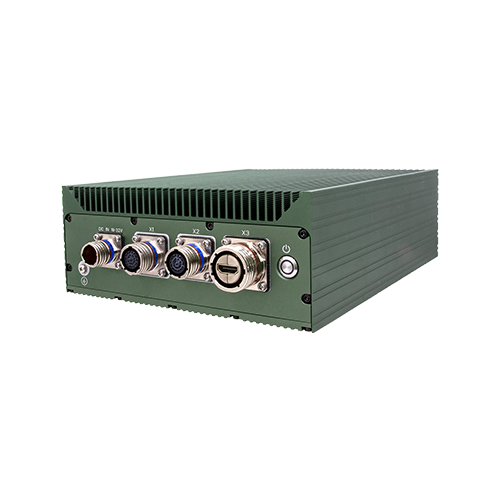

Military NVIDIA Jetson Orin NX IP65 Computer
Key Features
- Jetson Orin NX (8/16 GB, 100 TOPS).
- IP65 Fanless Rugged Design.
- 4 × 3G-SDI + 4 × GMSL Inputs.
- Dual LAN, 4G/5G, Wi-Fi, CAN, Serial.
- MIL-STD-810/461 Certified.
- Compact 220 × 300 × 88 mm Chassis.
Pricing Available Upon Request
Need Assistance?
- +44 (0)1527 512 400
Overview
NV200 is an ultra-small-form-factor (USFF) MIL-SPEC rugged edge compute solution. Designed using a Modular Open Systems Approach (MOSA) with a modular chassis and architecture design, integrating either the NVIDIA Jetson Orin NX edge AI system on module (SOM), NV200 provides the performance and flexibility demanded by emerging autonomous and uncrewed missions, in an ultra-compact and lightweight form factor. NV200 is engineered to withstand austere environments and is SWaP-optimised for integration and deployment in highly space-constrained platforms.
Support
- Need Help? Get In Touch
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
System
High Performance Processor:
Jetson Orin NX 16GB (8 Core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU).
Jetson Orin NX 8GB (6 Core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU).
GPU:
1024-core NVIDIA Ampere GPU with 32 Tensor Cores (918MHz Max Frequency).
AI Performance:
Jetson Orin NX 16GB (Up to 100 (Sparse) INT8 TOPs & 50 (Dense) INT8 TOPs).
Jetson Orin NX 8GB (Up to 70 (Sparse) INT8 TOPs & 35 (Dense) INT8 TOPs).
Memory Type:
Jetson Orin NX 16GB (16GB 128-bit LPDDR5 DRAM).
Jetson Orin NX 8GB (8GB 128-bit LPDDR5 DRAM).
Expansion:
1 x WiFi Module (M.2 2230 E-Key).
1 x M.2 2230 (M-Key).
1 x M.2 2280 (M-Key).
Optional GMSL2 module with 4 x FAKRA connector.
Storage:
1 x M.2 2230 (Key-M) Slot (PCIe x1).
1 x M.2 2280 (Key-M) (NVMe) Slot (Option).
I/O

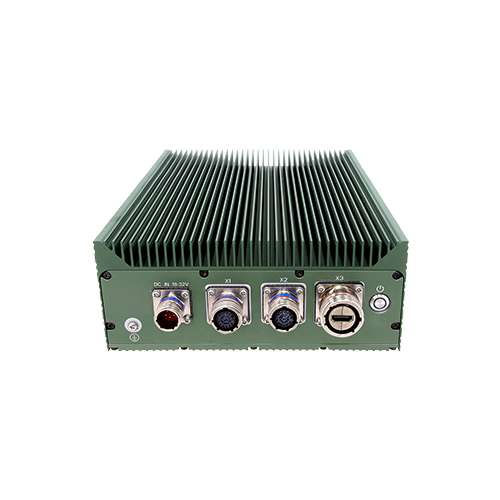

Front I/O:
1 x Ground Screw.
18V~32V DC Input.
X1 (2 x 1GbE LAN).
X2 (1 x CAN + 1 x RS232/422/485 + 4 x DIO).
X3 (1 x HDMI 2.0).

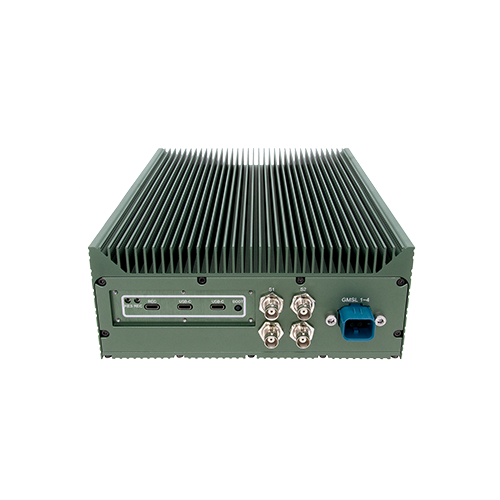

Rear I/O (Option):
2 x Antenna Holes For Wi-Fi 5/6 Modules (PR-SMA Antenna) (Option).
2 x Antenna Holes For LTE/5G Module (SMA Antenna) (Option).
1 x Antenna Hole For GNSS (RP-SMA Antenna) (Option).
GMSL2:
2×2 Mini FAKRA SMB Plug Z-Code (4 x GMSL2 Connectors).
4 x BNC Connectors 3G-SDI (Option).
Access Panel:
1 x Boot LED.
2 x USB3.1 (Type-C).
1 x USB3.1 (Type-C for Recovery).
1 x Recovery Button.
1 x Reset Button.
Power
Power Input:
18V to 32V DC.
Environmental
MIL-STD-461 (Options):
EMC:
CE102 basic curve, 10kHz – 30 MHz.
RE102-4, (1.5 MHz) -30 MHz – 5 GHz.
RS103, 1.5 MHz – 5 GHz, 50 V/m equal for all frequencies.
Reliability:
No Moving Parts; Passive Cooling.
Designed & Manufactured using ISO 9001/2000 Certified Quality Program.
Operating Temperature:
-20 to 50°C (Ambient with air flow).
Storage Temperature:
-40 to 85°C.
Relative Humidity:
5% to 95% (Non-condensing).
Mechanical
Dimension (W x D x H):
220 x 300 x 88 mm.
Weight:
3 kg.
Chassis:
Aluminum AL6061.
Heatsink:
Aluminum Alloy (Corrosion Resistant).
Finish:
Anodic Aluminum Oxide (Colour).
Cooling:
Natural Passive Convection/Conduction.
No Moving Parts.
Ingress Protection:
IP65.
Other Features
Operating System:
Ubuntu 20.04 With JetPack6.0.
