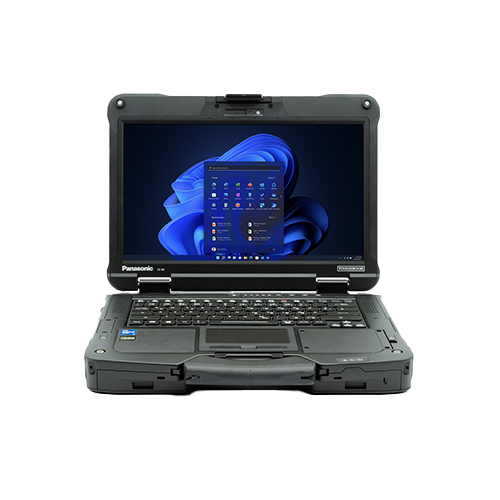

Panasonic TOUGHBOOK 40 Tactical | 14″ Military-Grade Rugged Laptop
- On Request
Key Features:
- High-Brightness 14" Touchscreen
- Modular Expansion Bay System
- Tactical Communications Support
- Advanced Security Features
- Stealth Mode
- Military-Grade Rugged Design
Overview:
The Panasonic TOUGHBOOK 40 Tactical is a fully rugged, mission-ready 14″ laptop designed specifically for defense and tactical operations. Engineered to meet and exceed MIL-STD-810H, MIL-STD-461H, and IP66 standards, it offers exceptional durability and secure performance in the harshest environments.
Built with a modular design, the TOUGHBOOK 40 Tactical allows for field customization with user-replaceable expansion areas – including support for additional I/O, storage, smart card readers, and more. Enhanced security features, including a dedicated encrypted SSD, secure boot, and optional hardware-based encryption, make it ideal for classified and sensitive military use.
Contact For Price
- Please Contact For Lead Time
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
Mobile Computing Platform:
Intel Core™ Ultra 5 135H Processor (With Intel vPro Technology) (Default).
Intel Core™ Ultra 7 165H Processor (With Intel vPro Technology) (Optional).
Memory:
16GB DDR5 RAM (64GB Max).
Graphic Chip:
Intel Graphics (Built-in CPU).
Supports Intel Arc™ Graphics when equipped with 2 RAM modules.
AMD Radeon™ PRO W6300M (Project based).
Storage:
512 GB NVMe OPAL SSD (2TB Max).
Display:
14″ Active Matrix (TFT) Colour LCD.
1,920 × 1,080 px Resolution (Full-HD).
1.200 cd/m² Brightness.
Capacitive 10 finger Touch Screen (Rain & Glove enabled).
Left Expansion Area**:
2nd SSD (NVMe).
Smart Card Reader.
DVD Multi Drive.
Blu-Ray Drive.
Right Expansion Area**:
2nd Battery.
Smart Card Reader.
Palm Rest Expansion Area**:
Fingerprint Reader (Windows Hello).
Fingerprint reader (Windows Hello / Multi-user Authentication).
Contactless Smart Card Reader (HF-RFID).

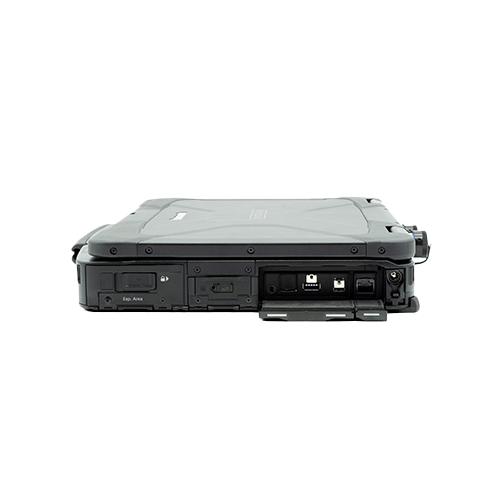

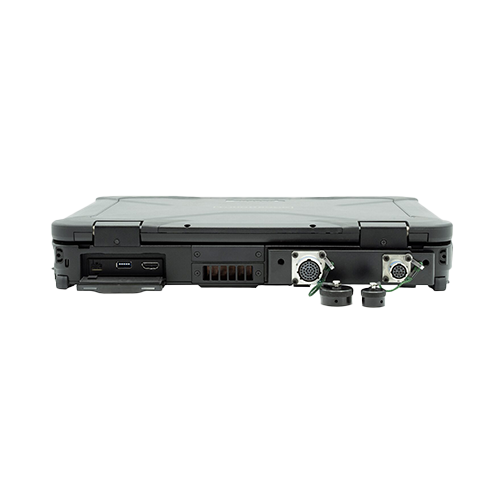

- I/O
1 x Micro SDXC Memory Card.
2 x USB 3.2 (Type A).
1 x Thunderbolt 4.
1 x HDMI.
1 x LAN.
1 x Headset.
1 x DC Input.
1 x Port Replicator.
1 x Quad Path Through Connector.
- Power
Power Management:
Standby function (ACPI BIOS).
AC Adapter:
100-240 V AC (50/60 Hz) Input.
15.6 V DC (7.05 A) Output.
Battery Life:
Approx. 12 hours (Mobile Mark™ 25).
Approx. 24 hours with 2nd battery (Mobile Mark™ 25).
Battery:
Lithium-Ion 10.8 V (6,300 mAh).
Hot Swap*:
With 2nd Battery.
- Environmental
Dust Resistance***:
IP6x.
Water Resistance***:
IPx6.
Operating Temperature***:
-29°C to +63°C.
- Mechanical
Dimensions (W × H × D):
354 × 301 × 54.4 mm.
Weight:
Approx. 3.35 kg.
Dimensions Module:
143.7 × 76 × 34.3 mm (Depending on Connectors).
Weight Module:
Approx 260g (Depending on Connectors).
Dimensions Main Unit With Module:
354 × 342 × 54.4 mm.
Weight Main Unit With Module:
Approx. 3.6 kg (Depending on Connectors).
- Other Features
Security:
TPM (TCG V2.0 Compliant).
Password Security (Supervisor password, User password, Hard disc lock).
Integrated Hardware Security Lock Slot.
Wireless LAN:
Intel Wi-Fi 7 BE200.
Bluetooth™:
5.3 (Class 1).
LAN:
IEEE 802.3 10Base-T /IEEE 802.3u 100BASE-TX /IEEE 802.3ab 1000BASE-T (2nd GLAN optional).
Sound:
HD-Audio with Stereo Speakers.
Mobile Broadband*:
4G EM7690 With eSIM Support / 5G EM9190 With eSIM Support.
Front Camera:
5 MP With IR / Privacy Shutter (Windows Hello Compliant).
Global Positioning*:
u-blox NEO-M9N (Supports GPS, GLONASS, Beidou, Galileo).
Enhanced Voice Recognition:
4 x Microphones*.
Operating System:
Windows 11 Pro (64-bit).
