Modular Fanless PC With IntelĀ® Alder Lake-N CPU.
- In Stock
Key Features:
- Slim 46.5 mm Enclosure.
- IntelĀ® Alder Lake-N Series CPU.
- Up to 16GB DDR5 4800MHz.
- Supports PoE+ / Ignition Control.
- Convertible Display Technology.
- -40Ā°C to 70Ā°C Operating Temperature.
Overview:
The Cincoze P1301 is a fanless embedded computer designed for industrial Internet of Things (IoT) applications, particularly at the edge.
Its slim 46.5mm chassis makes it ideal for space-constrained environments, while its Intel Alder Lake-N processor (N97 or Atom x7425E) offers efficient performance for various tasks.
From £945.00 ex VAT
- Please Contact For Lead Time
Configure & Buy
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
Processor (Onboard IntelĀ® Alder Lake-N Series Processor):
IntelĀ® Coreā¢ i3-N305 (8 Cores / Up to 3.80 GHz / 15W TDP).
IntelĀ® Processor N97 (4 Cores / Up to 3.60 GHz / 12W TDP).
Intel AtomĀ® x7425E (4 Cores / Up to 3.40 GHz / 12W TDP).
Memory:
1 x DDR5 4800MHz SO-DIMM Socket (Supports Un-buffered & Non-ECC Type) (Up to 16GB).
BIOS:
AMI BIOS.
Graphics:
Graphics Engine (Integrated IntelĀ® UHD Graphics).
Maximum Display Output (Supports Triple Independent Display).
Storage:

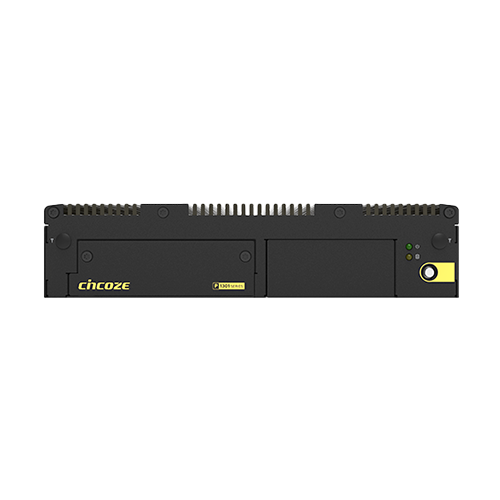

1 x 2.5″ Front Accessible SATA HDD/SSD Bay.
1 x M.2 SSD Shared by M.2 Key B Type 3042/3052 Socket, Support SATA SSD (SATA3.0).
Expansion:
1 x M.2 Key E Type 2230 Socket (PCIe Gen 3×1 / USB2.0), Support Wireless/Intel CNVi Module Expansion.
1 x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3×1 / USB3.2 Gen2 x1 / SATA), Support 5G/Storage/Add-on Card Expansion.
1 x Front Accessible SIM Socket.
1 x CFM Interface for optional IGN Module Expansion.
1 x CFM Interface for optional PoE Module Expansion.
- I/O

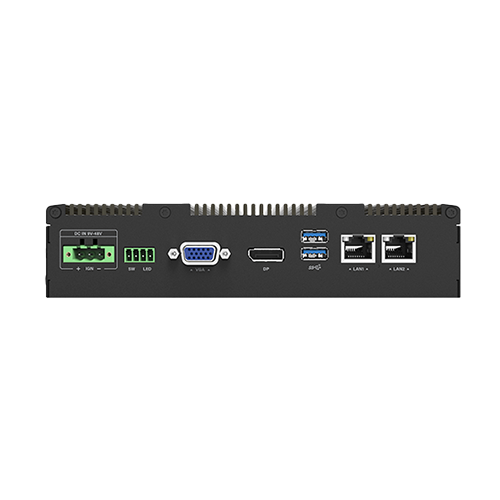

Display:
1 x CDS Connector (1920 x 1080 @ 60Hz).
1 x DisplayPort Connector (4096 x 2304 @ 60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz.
1 x VGA Connector (1920 x 1200 @ 60Hz).
LAN:
2 x 2.5GbE LAN (RJ45).
GbE1 / GbE2 (IntelĀ® I225).
COM:

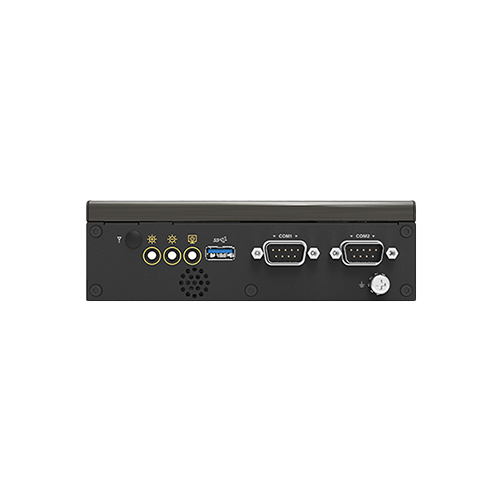

2 x RS-232/422/485 with Auto Flow Control Support 5V/12V (DB9).
USB:
3 x USB 3.2 Gen2x1 (10Gbps) (Type A).
1 x USB 2.0 (480Mbps) (Type A).
DIO:

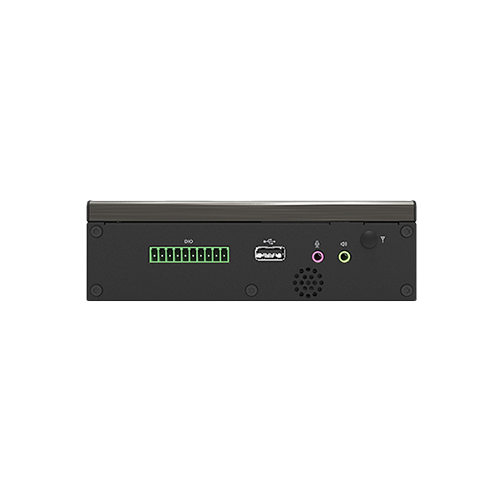

8 x Isolated Digital I/O (4in/4out) (10 Pin Terminal Block).
- Power
Button & Switches:
1 x ATX Power On/Off Button.
1 x AT/ATX Mode Switch.
Power Input:
9 – 48VDC (3-pin Terminal Block).
Remote Power On/Off:
1 x Remote Power On/Off (2-pin Terminal Block).
Remote Power LED:
1 x Remote Power LED (2-pin Terminal Block).
Maximum Power Consumption:
i3-N305 CPU (48.59W).
N97 CPU (34.04W).
Test conducted with CPU, 1 x RAM, and 1 x storage.
100% load during burn-in testing.
Inrush Current (Peak):
i3-N305 CPU (5.538 A @ 12V).
N97 CPU (5.242 A @ 12V).
Reverse Power Input:
Yes.
Over Voltage Protection:
51 ~ 58V Protection Range.
Protection Type:
Shut down operating voltage /Ā Re-power on at the present level to recover.
Over Current Protection:
15A.
CMOS Battery Backup:
SuperCap Integrated for CMOS Battery Maintenance-free Operation.
MTBF:
306,338 Hours (Database: Telcordia SR-332 Issue3, Method 1, Case 3).
- Environmental
Operating Temperature:
-40Ā°C to 70Ā°C.
PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (Without thermal throttling).
With extended temperature peripherals; Ambient with air flow.
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14.
Storage Temperature:
-40Ā°C to 70Ā°C.
Relative Humidity:
95% RH @ 70ĖC (Non-condensing).
Shock:
Operating 50 Grms, Half-sine 11 ms Duration (With SSD, according to IEC60068-2-27).
Vibration:
Operating 1 Grms, 10-500 Hz, 3 Axes (With SSD, according to IEC60068-2-6).
Operating 5 Grms, 5-500 Hz, 3 Axes (With SSD, according to IEC60068-2-64).
EMC:
CE, UKCA, FCC, ICES-003 Class A.
EN61000-6-4, EN61000-6-2 @ DC-input 24V.
EMI:
CISPR 32 Conducted & Radiated: Class A
EN/BS EN 55032 Conducted & Radiated: Class A
EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
EN/BS EN61000-3-3 Voltage fluctuations & flicker
FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS:
EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
EN/IEC 61000-4-6 CS: 10V
(**Compliant with the standard when utilizing shielded ethernet cable.)
ā¢ EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
ā¢ EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
Safety:
UL, cUL, CB, IEC, EN 62368-1.
- Mechanical
Dimension (W x D x H):
204.5 x 149 x 46.5mm.
Weight:
1.57 kg.
Mechanical Construction:
Extruded Aluminum with Heavy Duty Metal.
Mounting:
Wall / VESA / CDS / DIN Rail.
Physical Design:
Fanless Design.
Jumper-less Design.
- Other Features
Operating System:
Microsoft (WindowsĀ®11 / WindowsĀ®10).
Linux (Ubuntu Desktop 22.04 LTS).
Clear CMOS Switch:
1 x Clear CMOS Switch.
Reset Button:
1 x Reset Button.
Instant Reboot:
Support 0.2sec Instant Reboot Technology.
Watchdog Timer:
Software Programmable Supports 256 Levels System Reset.
OSD Function:
LCD On/Off / Brightness Up / Brightness Down.
Internal Speaker:
AMP 2W + 2W.
Status LED Indicator:
Power LED / HDD LED.
