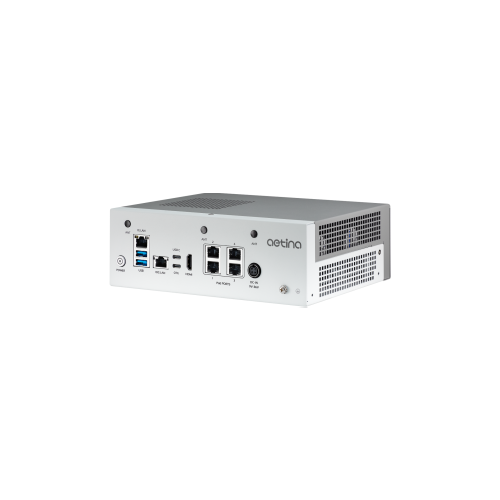

Aetina AI Inference / DeviceEdge Jetson System (AGX Orin 32GB / 2 x PoE)
- 1792 Core NVIDIA Ampere GPU.
- 200 TOPS AI Performance.
- 32GB 256-bit LPDDR5 204.8 GB/s.
- 2 x IEEE 802.3af GbE PSE Ports.
- 9 to 36 VDC Input Voltage.
- -25°C to 70°C Operating Temperature.
8 x AI performance enables AI inference with low latency
NVIDIA Jetson AGX Orin module offers up to 275 TOPS, 8 times more than NVIDIA® Jetson AGX Xavier™ 32GB module. Built in 2048 NVIDIA® CUDA® cores and 64 Tensor Cores, NVIDIA Jetson AGX Orin 64GB module enables server-class AI inference at the edge with low latency.
Comprehensive M.2 expansion, PSE and LAN ports
AIE-KX11/12/21/22 is a system with high expansion ability, built in 1x M.2 B-Key for LTE/5G, 1x M.2 E-Key for Wifi/BT and 1x M.2 M-Key for storage. For network, on-board 2 or 4x PSE ports support 2 or 4x POE cameras, and 1x10GbE port offers data speeds up to 10 billion bits per second, 10 times faster than traditional GbE standard.
Wide input power and operating temperature for various embedded applications
To meet various embedded applications, especially challenging environments in smart factory, smart city, and smart transportation, AIE-KX11/12/21/22 supports operating temperature ranging from -25°C to 70°C and wide input power from 9 to 36VDC.
- AI Accelerator
-
Jetson AGX Orin 32GB.
- Processor
-
8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3.
- Graphics
-
1792-core NVIDIA Ampere GPU with 56 Tensor Cores.
- Memory
-
32GB 256-bit LPDDR5 204.8 GB/s.
- Storage
-
64GB eMMC 5.1.

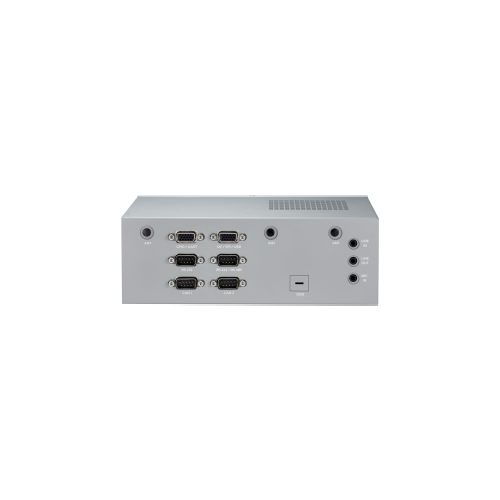

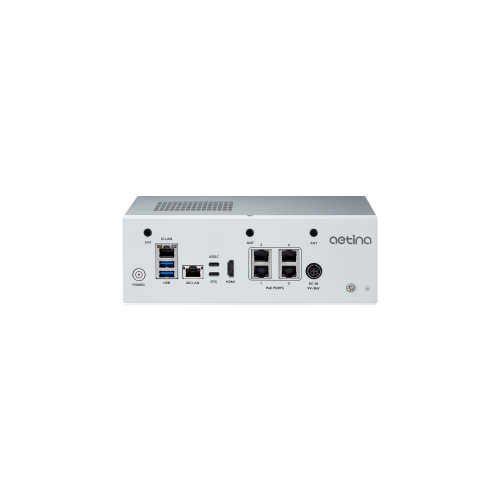

- I/O
-
LAN:
1 x RJ-45 GbE.
1 x RJ-45 10GbE.PoE Interface:
2 x RJ-45 GbE PSE (IEEE 802.3af compliant) (Power Output 15W/Port).
PSE Port 1 & Port 2 support IEEE 802.3at compliant; Total PSE ports support up to 60W.Display:
1 x HDMI 2.0 Type A.USB:
2 x USB 3.2 Gen1 Type A.
1 x USB 2.0 (DB-15).
1 x OTG Type-C.
1 x USB 3.2 Gen2 Type-C.
2 x I2C.
1 x SPI.
5 x GPIO.
2 x UART.
1 x RS-232.
1 x RS-422/485 (2-in-1).
2 x CAN 2.0b (Isolation support CAN FD).
1 x microSIM Card Slot.Out-Of-Band (OOB) (Optional):
Supports Ethernet and Wi-Fi, monitoring and managing at remote locations.
- Expansion
-
M.2:
1 x M.2 B-Key 3042/3052 (LTE/4G/5G).
1 x M.2 E-Key 2230 (WiFi/BT).
1 x M.2 M-Key 2280 (Supports NVMe PCIe x2 Gen3).MicroSD:
1 x microSD Card Slot.
- Other Features
-
TPM:
TPM v2.0 (Optional).Misc.:
1 x Power / 1 x Recovery / 1 x Reset Button.Mounting:
Wall Mount (Optional) / Din Rail (Optional).
- Power
-
DC Input:
9 to 36 VDC (4-Pin DC Jack Power Connector).Power Consumption:
Idle (14.3W).
Full Loading (115.8W).
Please refer to the user manual for more test condition information.
- Environmental
-
Operating Temperature:
-25°C ~ +70°C (-13°F ~ +158°F) with 0.5 m/s air flow.Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).Humidity:
95% @ 40°C (104°F) (non-condensing).Vibration:
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.Shock:
10 G, IEC 60068-2-27, half sine, 11 ms duration.
- OS Support
-
Linux (Supports Jetpack 5.0 and above).
- Dimensions
-
(W) 220 x (D) 170 x (H) 79 mm.
- Weight
-
1.852 kg.
- Certification
-
CE / FCC Class A / UKCA.
