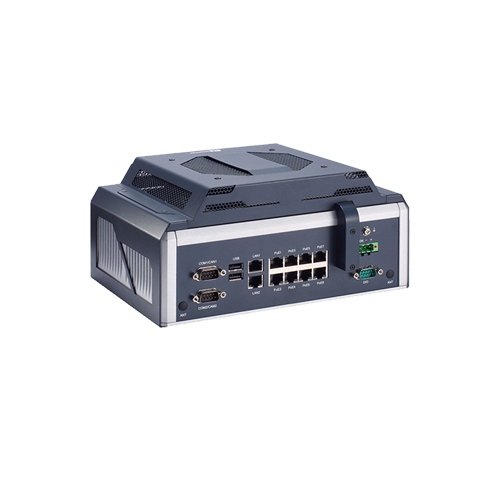

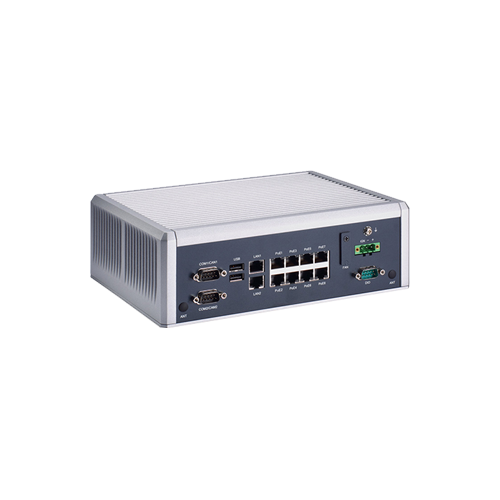

Fanless Jetson Orin AGX System With 8 x PoE
Key Features:
- 8 x PoE Ports
- 8 x GMSL/FPD Link (Optional)
- -25°C to +60°C Operating Temp
- 8 x Digital I/O
- 6 x USB Ports
- Available Until 2032
Overview:
The Axiomtek AIE900A-AO is specifically designed to seamlessly integrate with the NVIDIA Jetson AGX Orin system-on-module. This powerful edge AI system is equipped with the latest NVIDIA Ampere architecture GPU and NVIDIA Deep Learning Accelerators, making it a formidable computing force. It supports 8 PoE and GMSL for camera and LiDAR connectivity, and is ideal for robotics applications.
Contact For Price
- Please Contact For Lead Time
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
AI Accelerator:
NVIDIA® Jetson AGX Orin™ 32GB (200 TOPS).
CPU:
8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3.
GPU:
1792-core NVIDIA Ampere™ GPU with 56 Tensor Cores.
Chipset:
SoC integrated
Memory:
32GB 256-bit LPDDR5 204.8GB/s.
Storage:
Onboard 64GB eMMC (Via Jetson AGX Orin™).
1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot.
1 x Micro SD slot.
Expansion:
8CH GMSL/FPD-LINK/V-by-One Automotive camera interfaces (Optional).
1 x Full-size PCI Express Mini Card slot (USB + PCIe).
1 x M.2 Key E 2230 slot for Wi-Fi 6(E).
1 x M.2 Key B 3052/3042 slot for 5G/LTE.
1 x Nano SIM slot.
- I/O
COM:
2 x DB9 for RS-232/422/485 & CAN (selected by jumper setting).
USB:
4 x USB 3.2 Gen2.
2 x USB 2.0.
Ethernet/PoE:
2 x 10/100/1000/2500 Mbps Ethernet (Intel® I226).
8 x 10/100/1000 Mbps PoE (Up to 60W) (Via LAN switch / 1 Gbps switching capacity).
GMSL:
8-channel GMSL (Optional).
Display:
1 x Lockable HDMI 2.0 (With 4K2K supported).
Digital I/O:
1 x 8-CH DI/DO.
- Power
Power Supply:
24 VDC with ignition power control.
- Environmental
Operating Temperature:
-25°C to +60°C (-13°F to +140°F).
Humidity:
10% to 95% (non-condensing).
Vibration:
3 Grms with M.2 (5 to 500Hz, X, Y, Z directions).
Construction:
Aluminum extrusion and heavy-duty steel (IP40).
Certifications:
CE / FCC Class A / UKCA.
- Mechanical
Dimensions (W x D x H):
239 x 185.3 x 79.4 mm (9.41″ x 7.3″ x 3.13″).
Weight (Net/Gross):
3.2 kg (7.05 lb) / 4.9 kg (10.8 lb).
Mounting:
Wall / DIN-Rail / VESA Mount Kit.
- Other Features
Watchdog Timer:
Built-in AGX Orin.
EOS Support:
Linux Ubuntu 20.04 or later.
