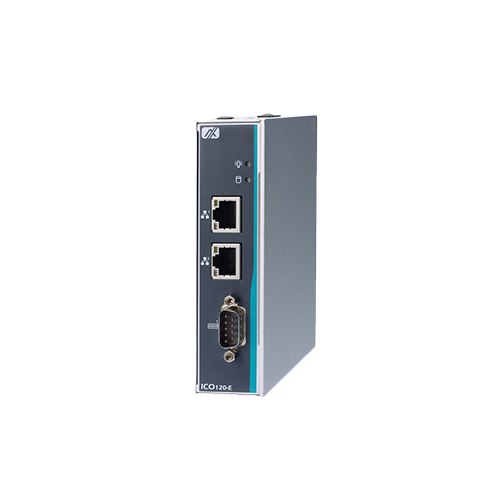

DIN-Rail IIoT Gateway With Apollo Lake-N3350 CPU (2 LAN)
SKU: ICO120-E3350
Key Features
- Fanless & Cableless.
- Intel® Celeron® N3350 CPU.
- 2 LAN / 2 USB & 1 COM.
- Supports SocketCAN.
- 12V ~ 24V DC Power Input.
- -20°C to 70°C Operating Temperature.
Overview
The Axiomtek ICO120-E3350 is a compact and powerful DIN-rail fanless embedded computer designed for demanding industrial IoT applications such as smart factory automation and smart energy.
Powered by an Intel Celeron processor and featuring a rugged design, this system delivers reliable performance in harsh environments. Its compact size and DIN-rail mounting options facilitate easy integration into various industrial setups.
Additionally, the ICO120-E3350 offers a wide range of connectivity options, including Ethernet, USB, and serial ports, ensuring seamless communication with diverse devices and networks.
Need Assistance?
- +44 (0)1527 512 400
Specifications
System
Processor(s):
Intel® Celeron® N3350 (2 Core @ 1.1 GHz / 6W TDP).
Chipset:
SoC Integrated.
Graphics Chipset:
Intel® HD Graphics 500.
Memory:
1 x 1600MHz DDR3L SO-DIMM Slot.
Up to 8GB Memory Supported.
Storage:
1 x mini mSATA (Occupied 1 PCI Express Mini Card slot).
Expansion:
1 x Full-size Rev. 1.2 PCI Express Mini Card Slot With PCIe/USB Signal (With SIM Socket).
1 x Half-size Rev. 1.2 PCI Express Mini Card Slot With mSATA/USB/PCIe Signal.

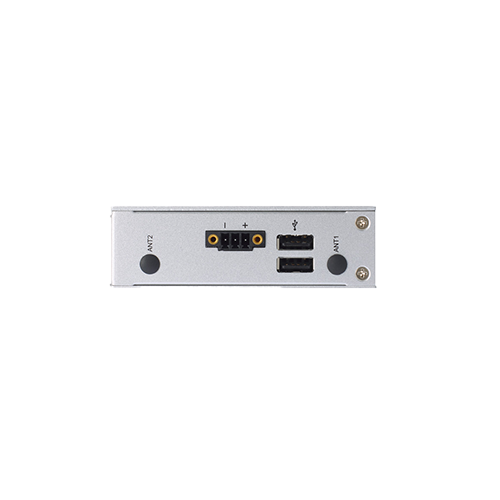

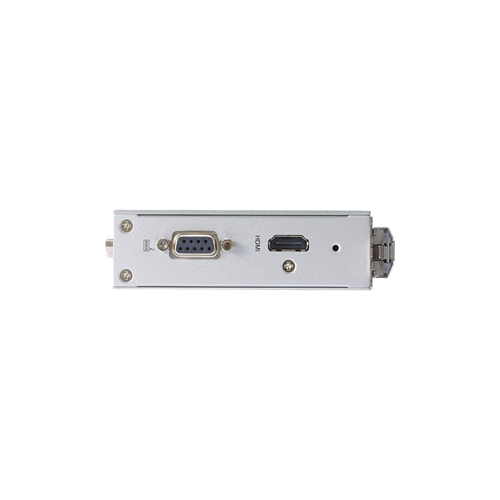

I/O
Serial:
1 x RS-232/422/485 (DB9).
Display:
1 x HDMI.
USB:
2 x USB 2.0.
Ethernet:
2 x RJ-45 GbE LAN (Intel® I210-IT) with an isolation voltage of 1.5 kV.
DIO:
1 x DIO (8-bit Programmable DIO).
Others:
2 x Antenna opening.
Power
Input Voltage Range:
9 to 36 VDC (12 to 24 VDC Typical).
Connector Type:
1 x Terminal Block.
Environmental
Operating Temperature:
-40°C to +70°C (-40°F to +158°F) With Wide Temperature Peripheral.
Humidity:
0% to 95% (Non-condensing).
Vibration:
2 Gms with storage (5 to 500Hz, X/Y/Z direction; random, operating).
Certifications:
CE (Class A), FCC (Class A), UL.
EN 55032 (Class A), EN 55035.
FCC part 15 B (Class A).
Construction:
Extruded aluminum and heavy-duty steel.
IP Rating:
IP30.
Mechanical
Dimensions:
(W) 31 mm x (D) 100 mm x (H) 125 mm.
(W) 48 x (D) 100 x (H) 125 mm (ICO120-E3350-F).
Weight (Net / Gross):
0.3 kg (0.67 lb) / 0.45 kg (0.99 lb).
0.4 kg (0.88 lb) / 0.5 kg (1.10 lb) (ICO120-E3350-F).

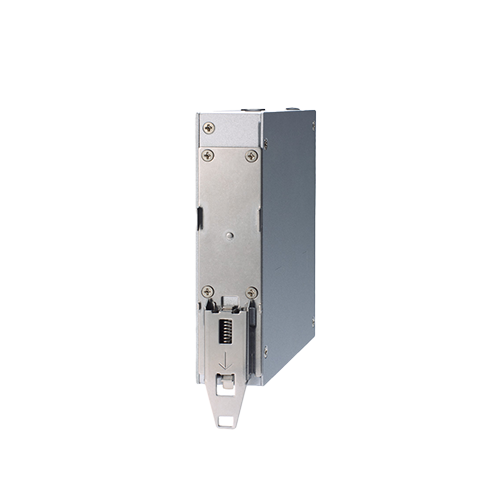

Mounting:
DIN-Rail / Wall.
Other Features
Watchdog Timer:
255 levels, 1 to 255 sec.
BIOS:
AMI.
TPM:
TPM 2.0.
Operating System Support:
Windows® 10 IoT.
Linux.
Software Support:
Axiomtek EAPI.
