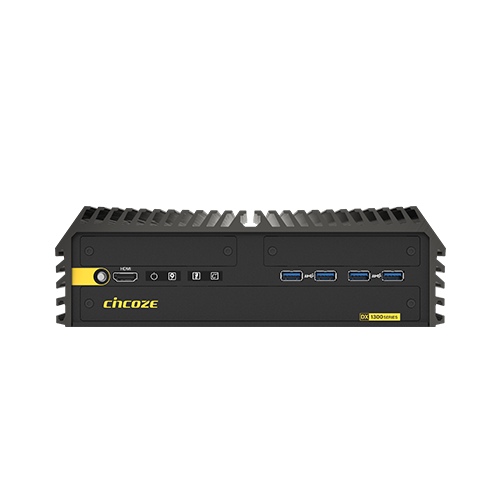

15th Gen High Performance Rugged Embedded PC With Modular Expansion

SKU: DX-1300

Key Features

Overview

The DX-1300 combines powerful edge computing performance with a compact, industrial-grade design, making it ideal for space-constrained deployments. Powered by the latest Intel® Arrow Lake-S Core™ Ultra 200S processor, it effortlessly handles demanding applications such as AI inference, advanced image processing, and real-time data integration.

Designed for reliability in harsh environments, the DX-1300 delivers the performance, flexibility, and ruggedness required for mission-critical operations, making it a trusted choice across manufacturing, in-vehicle, and railway applications.

Need Assistance?

Specifications

System

Processor (Arrow Lake-S Ultra 200S Series CPU):
Intel® Core™ Ultra 9 285 (24 Cores | Up to 5.6 GHz | 65W TDP).
Intel® Core™ Ultra 9 285T (24 Cores | Up to 5.4 GHz | 35W TDP).
Intel® Core™ Ultra 7 265 (20 Cores | Up to 5.3 GHz | 65W TDP).
Intel® Core™ Ultra 7 265T (20 Cores | Up to 5.3 GHz | 35W TDP).
Intel® Core™ Ultra 5 245 (14 Cores | Up to 5.1 GHz | 65W TDP).
Intel® Core™ Ultra 5 245T (14 Cores | Up to 5.1 GHz | 35W TDP).
Intel® Core™ Ultra 5 225 (10 Cores | Up to 4.9 GHz | 65W TDP).
Intel® Core™ Ultra 5 225T (10 Cores | Up to 4.9 GHz | 35W TDP).

Chipset:
Intel W880.

Memory:
2 x DDR5 SODIMM/CSODIMM Socket (Supports Un-buffered and ECC Type).
Ultra 9 / 7 supports up to 96GB @ 6400MHz.
Ultra 5 supports up to 96GB @ 5600MHz.

Graphics:
Integrated Intel® Xe LPG Graphics.
Supports Three Independent Display.

Storage & Expansion:
2 x 2.5” Front Accessible SATA HDD/SSD Bay (SATA 3.0).
1 x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3×2 / USB3.2 Gen1x1 / SATA), Support 5G / GNSS / Storage / Add-on Card
Expansion.
1 x M.2 Key B Type 2242 Socket (PCIe Gen 4×2 / SATA / USB 2.0), Support Storage / Add-on Card Expansion.
1 x M.2 Key E Type 2230 Socket (PCIe Gen 3×2 / USB2.0), Support Wireless / Bluetooth / Storage / Intel CNVi Module Expansion.
1 x SIM Socket.
2 x High Speed CMI Interface for optional CMI Module Expansion.
1 x Low Speed CMI Interface for optional CMI Module Expansion.

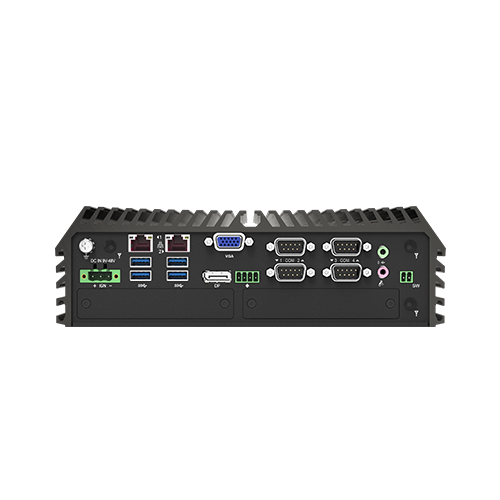

I/O

VGA:
1 x VGA Connector (1920 x 1200 @ 60Hz).

DisplayPort:
1 x DP Connector (4096 x 2304 @ 60Hz).
Support cable switch HDMI (4096 x 2160 @ 30Hz).
Verified maximum resolution (3840 x 2160 @ 60Hz).

HDMI:
1 x HDMI Connector (4096 x 2160 @ 30Hz).
Verified maximum resolution (3840 x 2160 @ 30Hz).

Audio:
Realtek® ALC888, High Definition Audio Codec.
1 x Line-out (3.5mm Phone Jack).
1 x Mic-in (3.5mm Phone Jack).

LAN:
2 x 2.5 GbE LAN (RJ45).
GbE1 & 2 (Intel® I226).

COM:
4 x RS-232/422/485 with Auto Flow Control (Supports 5V/12V) (DB9).

USB:
4 x 10Gbps USB 3.2 (Gen2x1 | Type A).
4 x 5Gbps USB 3.2 (Gen1x1 | Type A).

Power

Power Button:
1 x ATX Power On/Off Button.

Power Mode Switch:
1 x AT/ATX Mode Switch.

Power Input:
9V to 48V DC (3-pin Terminal Block).

Remote Power On/Off:
1 x Remote Power On/Off (2-pin Terminal Block).

Remote Power LED:
1 x Remote Power LED (2-pin Terminal Block).

Max. Power Consumption:
35W CPU @ 162W.
65W CPU @ 272.88W.
Test conducted with CPU, 1 x RAM, and 1 x storage.
100% load during burn-in test.

Inrush Current (Peak):
5.24 A @ 24V (35W CPU).
4.939 A @ 24V (65W CPU).

Reverse Power Input Protection:
Yes.

Over Voltage Protection:
51V to 58V Protection Range.
Protection Type (Shut down operating voltage, re-power on at the preset level to recover).

Over Current Protection:
15A.

CMOS Battery Backup:
SuperCap Integrated for CMOS Battery Maintenance-free Operation.

MTBF:
332,808 Hours (Database: Telcordia SR-332 Issue3, Method 1, Case 3).

Environmental

Operating Temperature:
-40°C to 60°C (35W TDP Processor).
-40°C to 50°C (65W TDP Processor with External Fan Kit).
With extended temperature peripherals; Ambient with air flow.
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14.

Storage Temperature:
-40°C to 85°C.

Humidity:
95% RH @ 60°C (Non-condensing).

Shock & Vibration:
MIL-STD-810H.

EMC:
CE, UKCA, FCC, ICES-003 (Class A).

EMI:
CISPR 32 Conducted & Radiated (Class A).
EN/BS EN 50121-3-2 Conducted & Radiated (Class A).
EN/BS EN IEC 61000-3-2 Harmonic current emissions (Class A).
EN/BS EN61000-3-3 Voltage fluctuations & flicker.
FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated (Class A).

EMS:
EN/IEC 61000-4-2 ESD (6 kV Contact | 8 kV Air).
EN/IEC 61000-4-3 RS (80 MHz to 1000 MHz | 20 V/m).
EN/IEC 61000-4-4 EFT (2 kV AC Power | 1 kV DC Power | 2 kV Signal).
EN/IEC 61000-4-5 Surges (2 kV AC Power | 1 kV Signal).
EN/IEC 61000-4-6 CS (10V).
EN/IEC 61000-4-8 PF (50 Hz | 30A/m).
EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions (1 Cycles @ 60 Hz).

Railway (EMC):
EN 50155 (2021 Clause 4.4.6, 13.4.9).
EN 50121-1 (2017).
EN 50121-3-2 (2016 + A1: 2019).

Fire Protection:
EN 45545-2.

Safety:
UL, cUL, CB, IEC, EN 62368-1.

Mechanical

Dimensions:
(W) 242.2 x (D) 173 x (H) 75 mm.

Weight:
3.59kg.

Construction:
Extruded Aluminum with Heavy Duty Metal.

Mounting:
Wall / DIN-RAIL / VESA / Side Mount.

Physical Design:
Fanless, Cableless, Jumper-less, Unibody Design.

Other Features

Security (TPM):
Support Discrete TPM2.0 (With Optional CFM Module).

RAID:
Support RAID 0/1/5/10.

Power Ignition Sensing:
Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module).

External FAN Connector:
1 x External FAN Connector (4-pin Terminal Block / Support Smart Fan by BIOS).

Clear CMOS Switch:
1 x Clear CMOS Switch.

Reset Button:
1 x Reset Button.

Instant Reboot Support:
0.2sec Instant Reboot Technology.

Watchdog Timer:
Software Programmable Supports 256 Levels System Reset.

BIOS:
AMI BIOS.

Operating Sytem:
Windows (11 & 10).
Linux (Ubuntu 24.04).
