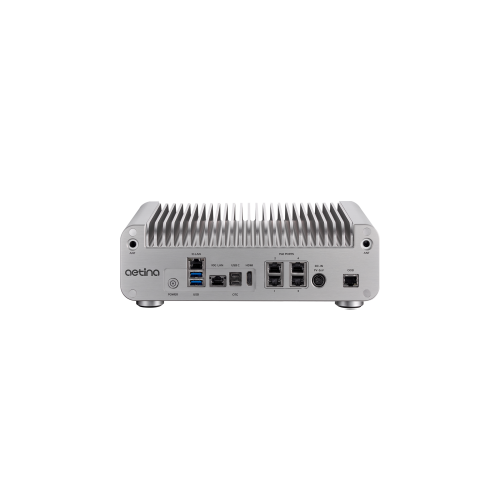

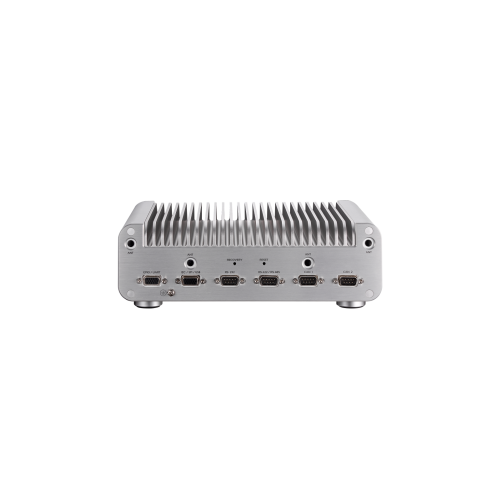

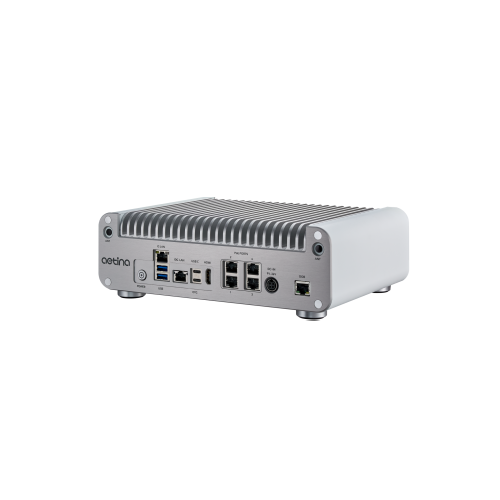

Fanless Jetson Orin AGX System With Up To 4 x PoE & 10GbE
- In Stock
Key Features:
- Up to 4 x PoE Ports
- 10 Gigabit Ethernet
- 2 x Isolated CAN (Inc. CAN FD)
- 5 x GPIO
- Optional 5G
- Available Until 2032
Overview:
The Aetina AIE-PX11/12/21/22 series comprises a range of fanless Edge AI box PCs designed to deliver high-performance AI inference at the edge.
These systems are powered by NVIDIA Jetson AGX Orin modules, offering robust AI capabilities in a compact, rugged form factor.
Back-Order Lead Time:
Technical Support
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
Module Compatibility:
NVIDIA Jetson AGX Orin 32GB (AIE-PX11 / AIE-PX12).
NVIDIA Jetson AGX Orin 64GB (AIE-PX21 / AIE-PX22).
AI Performance:
200 TOPS (AIE-PX11 / AIE-PX12).
275 TOPS (AIE-PX21 / AIE-PX22).
GPU:
1792-core NVIDIA Ampere GPU with 56 Tensor Cores (AIE-PX11 / AIE-PX12).
2048-core NVIDIA Ampere GPU with 64 Tensor Cores (AIE-PX21 / AIE-PX22).
CPU:
8-core Arm® Cortex® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3 (AIE-PX11 / AIE-PX12).
12-core Arm® Cortex® -A78AE v8.2 64-bit CPU 3MB L2 + 6MB L3 (AIE-PX21 / AIE-PX22).
Memory:
32GB 256-bit LPDDR5 204.8 GB/s (AIE-PX11 / AIE-PX12).
64GB 256-bit LPDDR5 204.8 GB/s (AIE-PX21 / AIE-PX22).
Storage:
64GB eMMC 5.1.
Expansion:
1 x M.2 B-Key 3042/3052 (LTE/4G/5G).
1 x M.2 E-Key 2230 (WiFi/BT).
1 x M.2 M-Key 2280 (Supports NVMe; PCIe x2 Gen3).
1 x microSD Card Slot.
- I/O
Display:
1 x HDMI 2.0 (Type A).
Ethernet:
1 x RJ-45 GbE.
1 x RJ-45 10GbE.
PoE:
2 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W/Port)* (AIE-PX11 / AIE-PX21).
4 x RJ-45 GbE PSE (IEEE 802.3af compliant, Power Output 15W/Port)* (AIE-PX12 / AIE-PX22).
*PSE Port 1 & Port 2 support IEEE 802.3at compliant; Total PSE ports support up to 60W.
USB:
2 x USB 3.2 (Gen1) (Type A).
1 x USB 2.0 (DB-15).
1 x OTG (Type-C).
1 x USB 3.2 (Gen2) (Type-C).
Other:
2 x I2C.
1 x SPI.
5 x GPIO.
2 x UART.
1 x RS-232.
1 x RS-422/485 (2-in-1).
2 x CAN 2.0b (Isolation / Supports CAN FD).
1 x microSIM Card Slot.
1 x OOB (Optional).
- Power
Input/Connector:
DC-in 9 to 36 VDC / 4-Pin DC Jack Power Connector.
Power Consumption:
7.5 W Idle / 109* W Full Loading (AIE-PX11 / AIE-PX12).
8 W Idle / 130* W Full Loading (AIE-PX21 / AIE-PX22).
*For more test condition information, please refer to user manual.
- Environmental
Vibration:
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock:
10 G, IEC 60068-2-27, half sine, 11 ms duration.
Operating Temperature:
-25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow.
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Certification:
CE / FCC Class A / UKCA.
- Mechanical
Dimension (W x D x H):
270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in).
Mounting:
Wall Mount (Optional) / Din Rail (Optional).
Weight (Net):
4.3 kg (9.48 lb).
- Other Features
Button Function:
1 x Power Button / 1 x Recovery Button / 1 x Reset Button.
TPM:
TPM v2.0 (Optional).
Software Support:
Linux (Support Jetpack 5.0 above).
