Fanless Jetson Orin NX System With Up To 4 x PoE Ports
- In Stock
Key Features:
- Up to 4x PoE Ports
- Isolated CAN (Inc. CAN FD)
- RS232/422/485 Serial
- 5 x GPIO
- 3 x M.2 Expansion Slots
- Available Until 2032
Overview:
The Aetina AIE-PN33/43-6USB is a compact, fanless edge AI system powered by NVIDIA® Jetson Orin™ NX, delivering up to 100 TOPS for real-time inferencing.
With six USB 3.2 ports for multi-camera input and versatile M.2 expansion options, it supports a range of AI applications including visual inspection and security monitoring. Compatible with Jetson Orin NX and Nano modules, and featuring EdgeEye for remote management, it offers a powerful, scalable solution for edge AI deployments.
Technical Support
- Documentation & Drivers
- Need Help?
- Talk to a solution specialist we're here to make sure you get your right fit solution.
- +44 (0)1527 512400
- computers@steatite.co.uk
Specifications
- System
Module Compatibility:
NVIDIA Jetson Orin NX 8GB (AIE-PN33-2PSE & AIE-PN33-4PSE).
NVIDIA Jetson Orin NX 16GB (AIE-PN43-2PSE & AIE-PN43-4PSE).
AI Performance:
70 TOPS (AIE-PN33-2PSE & AIE-PN33-4PSE).
100 TOPS (AIE-PN43-2PSE & AIE-PN43-4PSE).
GPU:
1024 Core NVIDIA Ampere with 32 Tensor Cores (AIE-PN33-2PSE & AIE-PN33-4PSE).
1024 Core NVIDIA Ampere with 32 Tensor Cores (AIE-PN43-2PSE & AIE-PN43-4PSE).
CPU:
6-core Arm® Cortex®-A78AE v 8.2 64-bit 1.5MB L2 + 4MB L3 (AIE-PN33-2PSE & AIE-PN33-4PSE).
8-core Arm® Cortex®-A78AE v 8.2 64-bit 2MB L2 + 4MB L3 (AIE-PN43-2PSE & AIE-PN43-4PSE).
Memory:
8GB 128-bit LPDDR5 102.4 GB/s (AIE-PN33-2PSE & AIE-PN33-4PSE).
16GB 128-bit LPDDR5 102.4 GB/s (AIE-PN43-2PSE & AIE-PN43-4PSE).
Storage:
1 x M.2 NVMe M-Key 2242 (128GB built-in).
Expansion:
1 x M.2 B-Key 3042/3052 (LTE/5G).
1 x M.2 E-Key 2230 (WiFi/BT).
1 x M.2 M-Key 2242 (NVMe 128GB built-in).

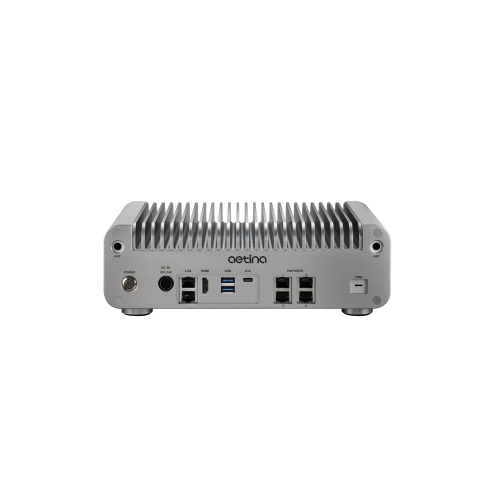

- I/O
Display:
1 x HDMI 2.0 (Type A).
Ethernet:
2 x RJ-45 GbE ports.
AIE-PN33-2PSE & AIE-PN43-2PSE PoE Ports:
2 x RJ-45 GbE PSE (IEEE 802.3af compliant)
15W per Port Power Output.
AIE-PN33-4PSE & AIE-PN43-4PSE PoE Ports:
4 x RJ-45 GbE PSE (IEEE 802.3af compliant)
15W per Port Power Output.
USB Ports:
2 x USB 3.2 Gen2 (Type A) (Support up to 10 Gbps shared).
4 x USB 3.2 Gen1 (Type A).
1 x OTG (Type-C).

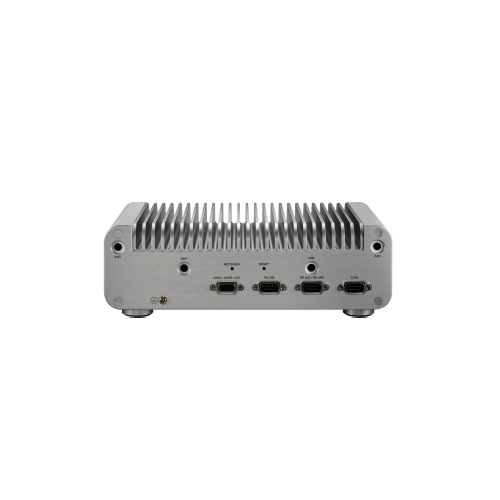

Other Ports:
5 x GPIO.
1 x UART.
1 x I2C.
1 x RS-232.
1 x RS-422/485.
1 x CAN (Isolation / Supports CAN FD).
- Power
Input/Connector:
DC-in 12-24VDC / 4-Pin DC Jack Power Connector.
Power Consumption:
6.413 W Idle / 89.13* W Full Loading.
*For more test condition information, please refer to user manual.
- Environmental
Vibration:
1 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock:
10 G, IEC 60068-2-27, half sine, 11 ms duration.
Operating Temperature:
-25°C ~ +55°C (-13°F ~ +131°F) with 0.5 m/s air flow.
Storage Temperature:
-40°C ~ +85°C (-40°F ~ +185°F).
Humidity:
95% @ 40°C (104°F) (Non-condensing).
Certification:
CE / FCC Class A / UKCA.
- Mechanical
Dimension (W x D x H):
270 x 195 x 80 mm (10.63 x 7.67 x 3.15 in).
Mounting:
Wall Mount (Optional) / Din Rail (Optional).
Weight (Net):
TBC kg (TBC lb).
- Other Features
Button Function:
1 x Power Button.
1 x Recovery Button.
1 x Reset Button.
TPM:
Not supported.
Software Support:
Linux (Support Jetpack 5.0 above).
